Petersen 938-96 Series 4" Deflection Gauge with Aluminum Fins

Name: Petersen 938-96 Series 4" Deflection Gauge with Aluminum Fins
Brand: Parker / Autoclave Engineers
SKU: HIG-d5a076
Price: 349.99 USD
Availability: OutOfStock

SKU:HIG-d5a076

Test sewer pipe deflection accurately with Petersen 938-96 Series 4" Gauge. Lightweight, corrosion-resistant, ASTM compliant.

$349.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Petersen 938-96 Series 4 inch Deflection Gauge with Aluminum Fins is an essential tool for testing flexible sewer pipes for out-of-roundness or deflection, meeting ASTM specifications D3034 and F679. Designed with a nine-arm aluminum fin structure, this gauge allows for accurate testing while facilitating the passage of gravel and debris. Lightweight and corrosion-resistant, it can be assembled without tools and fits through a standard 24-inch manhole. Ensuring optimal performance by verifying proper bedding and backfilling as per ASTM D2321, this gauge guarantees that flexible pipes are within tolerance and meet regional codes.

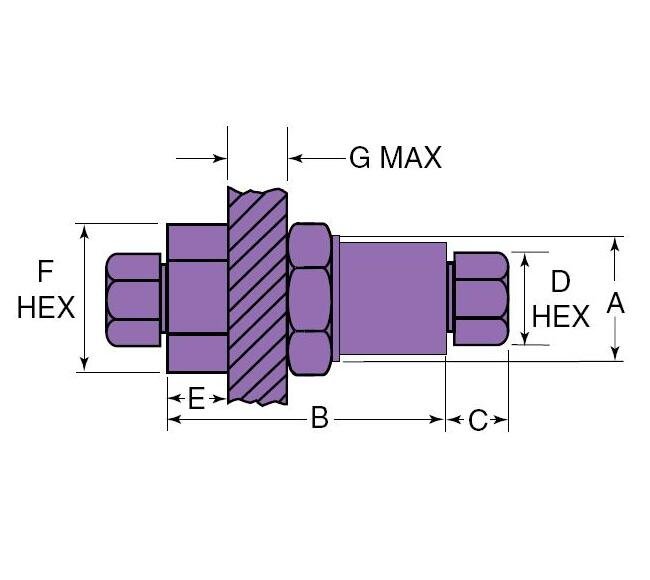

Product Specifications

Specifications A Panel Hole Drill Size

1.69 in | 42.93 mm

Specifications B Length

2.75 in | 69.85 mm

Specifications Connection Type

F562C40

Specifications C Length

0.81 in | 20.57 mm

Specifications D Hex

1.19 in | 30.23 mm

Specifications E Length

1.00 in | 25.40 mm

Specifications F Hex

1.88 in | 47.75 mm

Specifications G Thickness

0.38 in | 9.65 mm

Specifications Minimum Opening

0.250 in | 6.35 mm

Specifications Outside Diameter Tube

14.29 mm | 9/16 in

Specifications Pressure Rating

40000 psi | 2757.86 bar

Specifications Tubing Engagement Depth

0.84 in | 21.3 mm

Petersen 938-96 Series 4" Deflection Gauge with Aluminum Fins
