Petersen Blue All-Weather Inflation Hose Assembly with Shut-Off Valve
Petersen Blue All-Weather Inflation Hose Assembly with Shut-Off Valve
SKU:HIG-6755f3
Enhance your inflation system with the Petersen® Blue All-Weather Hose. 3/8" ID x 16', with shut-off valve.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
Petersen Blue All-Weather Inflation Hose Assembly with Shut-Off Valve
$49.99
Quantity: 1
Claim Your Seller Account
Petersen Blue All-Weather Inflation Hose Assembly with Shut-Off Valve
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Upgrade your air inflation system with the Petersen® Blue All-Weather Inflation Hose Assembly. This 16-foot hose features a 3/8" ID for optimal airflow, equipped with a shut-off and pressure relief valve for safety and control. The durable construction ensures reliable performance in any weather condition. Ideal for use with 161-5 Series High Pressure Heavy Duty Bags, this hose assembly is a must-have for industrial and institutional settings.

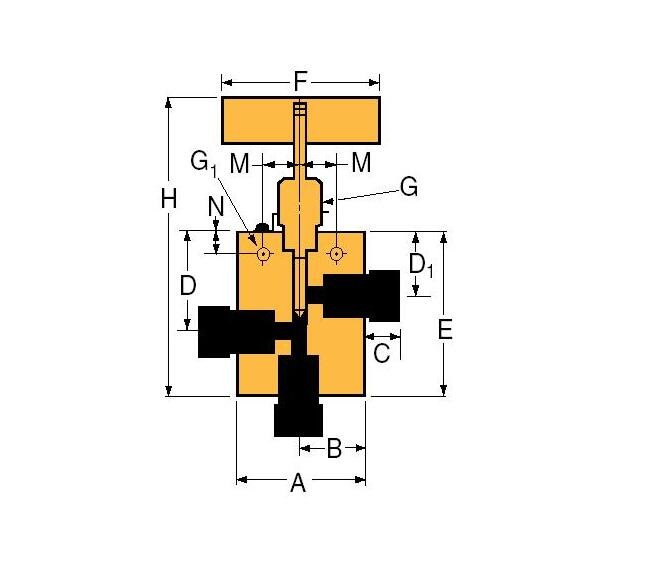

Product Specifications
Specifications A Width
2.00 in | 50.80 mm
Specifications Block Thickness
0.75 in | 19.05 mm
Specifications B Length
1.00 in | 25.40 mm
Specifications Connection Type
SW375
Specifications C Length
0.47 in | 11.94 mm
Specifications D1 Height
1.19 in | 30.23 mm
Specifications D Height
1.62 in | 41.15 mm
Specifications E Height
2.62 in | 66.55 mm
Specifications F Length
3.00 in | 76.20 mm
Specifications G1 Bracket Mounting Hole Size
0.22 in | 5.59 mm
Specifications G Packing Gland Mounting Hole Drill Size
0.75 in | 19.05 mm
Specifications H Height
5.94 in | 150.88 mm
Specifications M Length
0.62 in | 15.75 mm
Specifications N Height
0.38 in | 9.65 mm
Specifications Orifice Diameter
0.250 in | 6.35 mm
Specifications Outside Diameter Tube
3/8 in | 9.53 mm
Specifications Pressure Rating At Room Temperature
15000 psi | 1034 bar
Specifications Rated Cv
0.95
Specifications Stem Type
REG
Specifications Tubing Engagement Depth
0.75 in | 19.1 mm
Specifications Valve Pattern
3-Way / 2 on Pressure
Valve Maintenance Valve Maintenance
Repair Kits:add "R" to the front of valve catalog number for proper repair kit. (Example: RSW4071)Valve Bodies:Valve bodies are available. Order using the eight (8) digit part number found on the valve drawing or contact your Sales Representative for information.Consult your Autoclave representative for pricing on repair kits and valve bodies. Refer to the Tools, Installation, Operation and Maintenance section for proper maintenance procedures.
Valve Options Valve Options
Extreme TemperaturesStandard Autoclave valves with Teflon packing may be operated to 450°F (232°C). High temperature packing and/or extended stuffing box is available for service from 0°F (-17.8°C) to 650°F (343°C) by adding the following suffixes to catalog order number.â TG standard valve with Teflon glass packing to 600°F (316°C).GY standard valve with graphite braided yarn packing to 650°F (343°C).â Autoclave Engineers does not recommend compression sleeve connections below 0°F (-17.8°C) or above 650°F (343°C). For additional valve options, contact your Sales Representative.
