Petersen Blue Color Hose Assembly
Petersen Blue Color Hose Assembly
SKU:HIG-393f74
Durable Petersen® blue hose assembly: 3/8" ID x 32', all-weather, with shut-off and pressure relief valve. Ideal for high pressure heavy-duty bags.
Regular price
$69.99
Regular price
Sale price
$69.99
Unit price
per
Initiate Order
Petersen Blue Color Hose Assembly
$69.99
Quantity: 1
Claim Your Seller Account
Petersen Blue Color Hose Assembly
$69.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Petersen® Blue Color Hose Assembly is a high-quality inflation hose designed for heavy-duty bags in 161-5 series applications. Featuring a 3/8 inch inside diameter and a 32-foot length, this hose is built for all-weather use. It includes a shut-off valve and pressure relief valve for added safety and control, making it ideal for both consumer and institutional buyers seeking reliable performance in demanding settings.

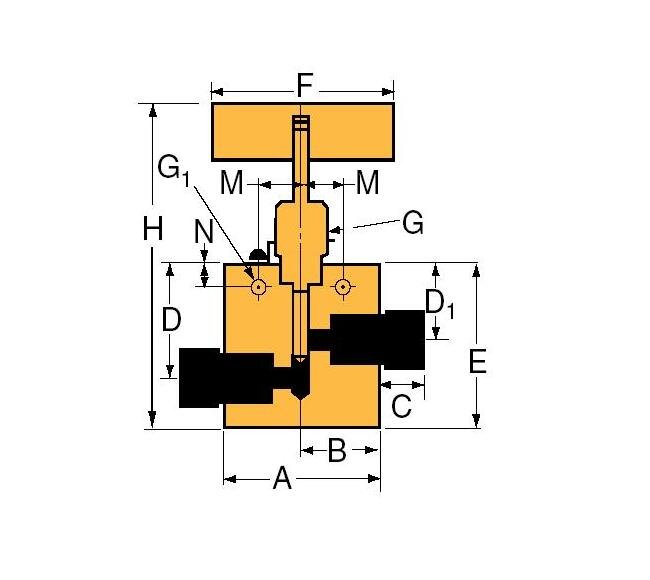

Product Specifications
Specifications A Width
2.00 in | 50.80 mm
Specifications Block Thickness
0.75 in | 19.05 mm
Specifications B Length
1.00 in | 25.40 mm
Specifications Connection Type
SW250
Specifications C Length
0.38 in | 9.65 mm
Specifications D1 Height
1.19 in | 30.23 mm
Specifications D Height
1.62 in | 41.15 mm
Specifications E Height
2.00 in | 50.80 mm
Specifications F Length
3.00 in | 76.20 mm
Specifications G1 Bracket Mounting Hole Size
0.22 in | 5.59 mm
Specifications G Packing Gland Mounting Hole Drill Size
0.75 in | 19.05 mm
Specifications H Height
4.50 in | 114.30 mm
Specifications M Length
0.62 in | 15.75 mm
Specifications N Height
0.38 in | 9.65 mm
Specifications Orifice Diameter
0.187 in | 4.75 mm
Specifications Outside Diameter Tube
1/4 in | 6.35 mm
Specifications Pressure Rating At Room Temperature
15000 psi | 1034 bar
Specifications Rated Cv
0.65
Specifications Stem Type
REG
Specifications Tubing Engagement Depth
0.69 in | 17.5 mm
Specifications Valve Pattern
2-Way Straight
Valve Maintenance Valve Maintenance
Repair Kits:add "R" to the front of valve catalog number for proper repair kit. (Example: RSW4071)Valve Bodies:Valve bodies are available. Order using the eight (8) digit part number found on the valve drawing or contact your Sales Representative for information.Consult your Autoclave representative for pricing on repair kits and valve bodies. Refer to the Tools, Installation, Operation and Maintenance section for proper maintenance procedures.
Valve Options Valve Options
Extreme TemperaturesStandard Autoclave valves with Teflon packing may be operated to 450°F (232°C). High temperature packing and/or extended stuffing box is available for service from 0°F (-17.8°C) to 650°F (343°C) by adding the following suffixes to catalog order number.â TG standard valve with Teflon glass packing to 600°F (316°C).GY standard valve with graphite braided yarn packing to 650°F (343°C).â Autoclave Engineers does not recommend compression sleeve connections below 0°F (-17.8°C) or above 650°F (343°C). For additional valve options, contact your Sales Representative.
