Petersen Blue Output Hose Assembly
Petersen Blue Output Hose Assembly
SKU:HIG-4853a9
High-quality Petersen® Blue Output Hose Assembly with 3/8" ID x 35', shut-off valve, and pressure relief for industrial use.
Regular price
$59.99
Regular price
Sale price
$59.99
Unit price
per
Initiate Order
Petersen Blue Output Hose Assembly
$59.99
Quantity: 1
Claim Your Seller Account
Petersen Blue Output Hose Assembly
$59.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Petersen® Blue Output Hose Assembly is a high-quality inflation hose designed for industrial use. With a 3/8" inside diameter and a length of 35 ft, this all-weather hose features a shut-off and pressure relief valve for added safety and control. It comes in a vibrant blue color and is equipped with 1/4 Inch safety coupler and nipple connections. Specifically intended for use with 161-0 Series High Pressure Flat Form Bags, this hose ensures reliable performance and durability in demanding applications.

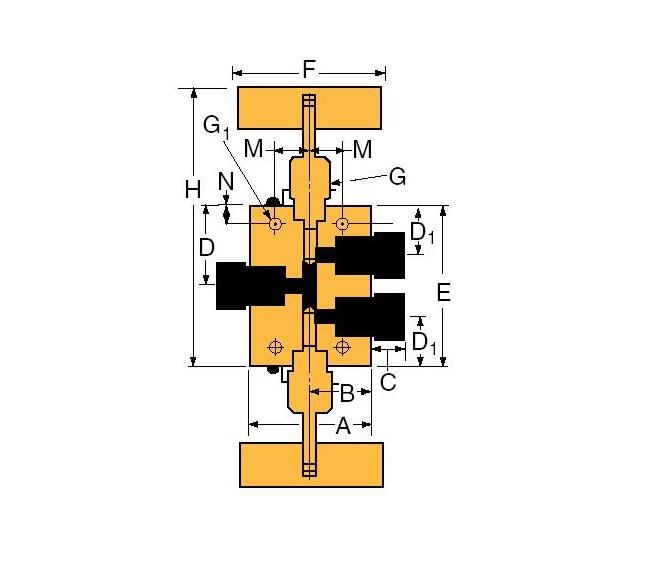

Product Specifications
Specifications A Width
2.50 in | 63.50 mm
Specifications Block Thickness
1.00 in | 25.40 mm
Specifications B Length
1.25 in | 31.75 mm
Specifications Connection Type
SW500
Specifications C Length
0.53 in | 13.46 mm
Specifications D1 Height
1.75 in | 44.45 mm
Specifications D Height
2.56 in | 65.02 mm
Specifications E Height
5.12 in | 130.05 mm
Specifications F Length
4.00 in | 101.60 mm
Specifications G1 Bracket Mounting Hole Size
0.34 in | 8.64 mm
Specifications G Packing Gland Mounting Hole Drill Size
1.00 in | 25.40 mm
Specifications H Height
8.20 in | 208.28 mm
Specifications M Length
0.69 in | 17.53 mm
Specifications N Height
0.50 in | 12.70 mm
Specifications Orifice Diameter
0.375 in | 9.53 mm
Specifications Outside Diameter Tube
1/2 in | 12.70 mm
Specifications Pressure Rating At Room Temperature
10000 psi | 690 bar
Specifications Rated Cv
1.90
Specifications Stem Type
REG
Specifications Tubing Engagement Depth
0.81 in | 20.6 mm
Specifications Valve Pattern
3-Way / 2-Stem Manifold
Valve Maintenance Valve Maintenance
Repair Kits:add "R" to the front of valve catalog number for proper repair kit. (Example: RSW4071)Valve Bodies:Valve bodies are available. Order using the eight (8) digit part number found on the valve drawing or contact your Sales Representative for information.Consult your Autoclave representative for pricing on repair kits and valve bodies. Refer to the Tools, Installation, Operation and Maintenance section for proper maintenance procedures.
Valve Options Valve Options
Extreme TemperaturesStandard Autoclave valves with Teflon packing may be operated to 450°F (232°C). High temperature packing and/or extended stuffing box is available for service from 0°F (-17.8°C) to 650°F (343°C) by adding the following suffixes to catalog order number.â TG standard valve with Teflon glass packing to 600°F (316°C).GY standard valve with graphite braided yarn packing to 650°F (343°C).â Autoclave Engineers does not recommend compression sleeve connections below 0°F (-17.8°C) or above 650°F (343°C). For additional valve options, contact your Sales Representative.
