Petersen Green Color Inflation Hose Assembly
Petersen Green Color Inflation Hose Assembly
SKU:HIG-337c38
Durable all-weather green hose assembly with shut-off valve and pressure relief for safe inflation.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
Petersen Green Color Inflation Hose Assembly
$49.99
Quantity: 1
Claim Your Seller Account
Petersen Green Color Inflation Hose Assembly
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Petersen® Green Color Inflation Hose Assembly is a high-quality all-weather hose designed for durability and performance. With a 3/8 inch inside diameter and a length of 16 feet, this hose assembly is equipped with a shut-off and pressure relief valve for added safety and convenience. It features 1/4 inch safety coupler and nipple connections, making it compatible with 161-5 Series High Pressure Heavy Duty Bags. Ideal for both consumer and institutional use, this hose assembly is a reliable choice for various inflation applications.
Ready to Grow Without Cash Flow Constraints?

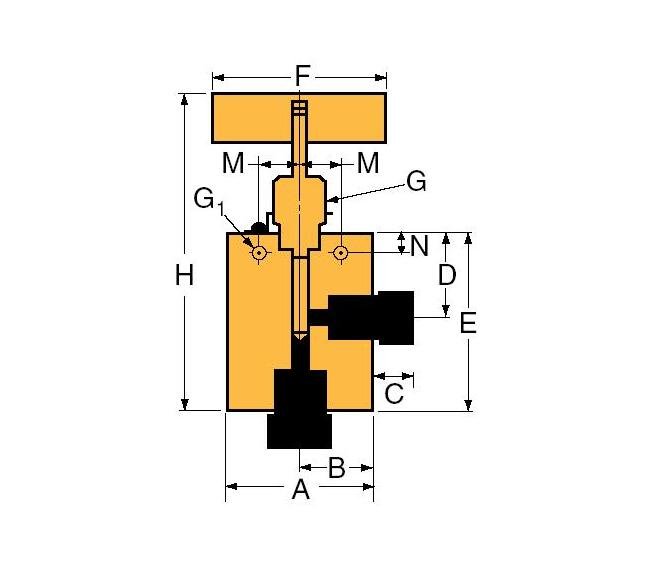

Product Specifications
Specifications A Width
2.00 in | 50.80 mm
Specifications Block Thickness
0.75 in | 19.05 mm
Specifications B Length
1.00 in | 25.40 mm
Specifications Connection Type
SW250
Specifications C Length
0.38 in | 9.65 mm
Specifications D Height
1.19 in | 30.23 mm
Specifications E Height
2.43 in | 61.72 mm
Specifications F Length
3.00 in | 76.20 mm
Specifications G1 Bracket Mounting Hole Size
0.22 in | 5.59 mm
Specifications G Packing Gland Mounting Hole Drill Size
0.75 in | 19.05 mm
Specifications H Height
5.75 in | 146.05 mm
Specifications M Length
0.62 in | 15.75 mm
Specifications N Height
0.38 in | 9.65 mm
Specifications Orifice Diameter
0.187 in | 4.75 mm
Specifications Outside Diameter Tube
1/4 in | 6.35 mm
Specifications Pressure Rating At Room Temperature
15000 psi | 1034 bar
Specifications Rated Cv
0.65
Specifications Stem Type
REG
Specifications Tubing Engagement Depth
0.69 in | 17.5 mm
Specifications Valve Pattern
2-Way Angle
Valve Maintenance Valve Maintenance
Repair Kits:add "R" to the front of valve catalog number for proper repair kit. (Example: RSW4071)Valve Bodies:Valve bodies are available. Order using the eight (8) digit part number found on the valve drawing or contact your Sales Representative for information.Consult your Autoclave representative for pricing on repair kits and valve bodies. Refer to the Tools, Installation, Operation and Maintenance section for proper maintenance procedures.
Valve Options Valve Options
Extreme TemperaturesStandard Autoclave valves with Teflon packing may be operated to 450°F (232°C). High temperature packing and/or extended stuffing box is available for service from 0°F (-17.8°C) to 650°F (343°C) by adding the following suffixes to catalog order number.â TG standard valve with Teflon glass packing to 600°F (316°C).GY standard valve with graphite braided yarn packing to 650°F (343°C).â Autoclave Engineers does not recommend compression sleeve connections below 0°F (-17.8°C) or above 650°F (343°C). For additional valve options, contact your Sales Representative.
