Petersen High Lift Flange Weld Test Plug - 0.07"
Petersen High Lift Flange Weld Test Plug - 0.07"
SKU:HIG-937600
Revolutionary High Lift design for superior seal clearance & easy installation. Ideal for welding & testing processes.
Regular price
$99.99
Regular price
Sale price
$99.99
Unit price
per
Initiate Order
Petersen High Lift Flange Weld Test Plug - 0.07"
$99.99
Quantity: 1
Claim Your Seller Account
Petersen High Lift Flange Weld Test Plug - 0.07"
$99.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Petersen High Lift Flange Weld Test Plug from the 151 Series offers a revolutionary 'High Lift' seal design for superior seal to pipe clearance and maximum seal expansion. This plug eliminates the need for grinding out deep root penetrations, ensuring seamless testing and welding processes. With features like segmented compression tube for adjustable seal depth, minimal water requirements, and rugged construction, this plug is a versatile and cost-effective solution for monitoring downstream conditions, isolating weld areas, conducting hydro tests, and minimizing environmental liabilities.

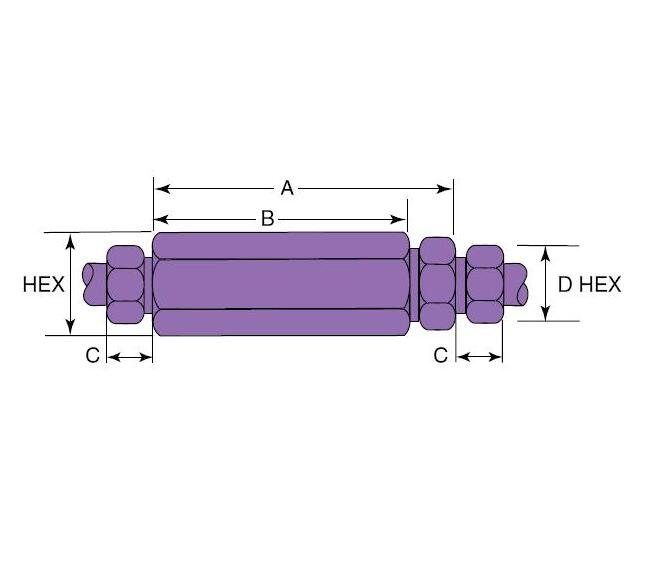

Product Specifications
Specifications A Length
3.18 in | 80.77 mm
Specifications B Length
2.56 in | 65.02 mm
Specifications C Length
0.44 in | 11.18 mm
Specifications D Hex
0.63 in | 16.00 mm
Specifications Fits Connection Type
SW250
Specifications Hex
0.81 in | 20.57 mm
Specifications Orifice
0.188 in | 4.78 mm
Specifications Pressure Rating
15000 psi | 1034.19 bar
Specifications Rated Cv
0.037
Specifications Tubing Engagement Depth
0.69 in | 17.5 mm
