Petersen High Pressure Cap for 3/4 Inch MNPT
Petersen High Pressure Cap for 3/4 Inch MNPT
SKU:HIG-9a653b
Securely seal 3/4 Inch MNPT plugs with the Petersen High Pressure Cap. Lightweight and durable, designed for high-pressure applications.
Regular price
$14.99
Regular price
Sale price
$14.99
Unit price
per
Initiate Order
Petersen High Pressure Cap for 3/4 Inch MNPT
$14.99
Quantity: 1
Claim Your Seller Account
Petersen High Pressure Cap for 3/4 Inch MNPT
$14.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Petersen High Pressure Cap for 3/4 Inch MNPT is expertly designed to provide a secure closure for 146-9 and 147 Series Plugs. Manufactured by Petersen®, a trusted brand known for quality and durability, this high-pressure cap ensures a perfect fit with a 3/4 inch MNPT bypass diameter. Weighing only 1 lb, it is lightweight yet sturdy, making it ideal for high-pressure applications. This cap meets stringent industry standards for reliability and performance, offering peace of mind and exceptional value to both consumers and institutional buyers.

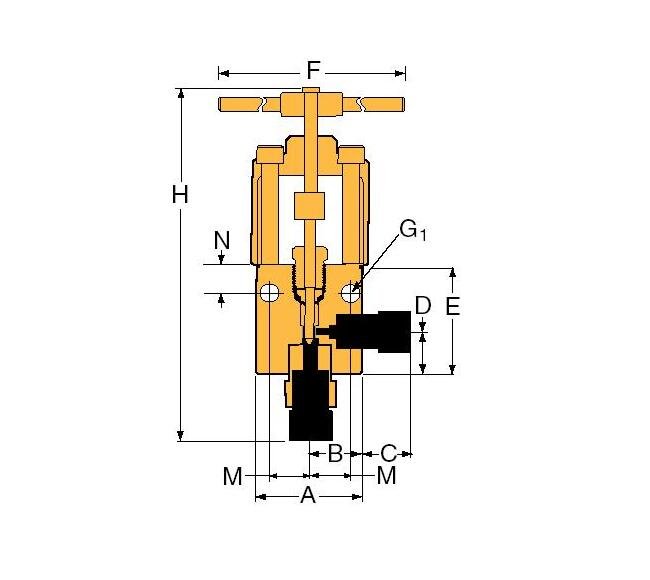

Product Specifications
Specifications A Width
3.00 in | 76.20 mm
Specifications Block Thickness
1.38 in | 34.93 mm
Specifications B Length
1.50 in | 38.10 mm
Specifications Connection Type
SF750CX
Specifications C Length
0.63 in | 15.88 mm
Specifications D Height
2.06 in | 52.32 mm
Specifications E Height
4.00 in | 101.60 mm
Specifications F Length
8.00 in | 203.20 mm
Specifications G1 Diameter
0.28 in | 7.11 mm
Specifications H Height
11.31 in | 287.27 mm
Specifications M Length
1.13 in | 28.58 mm
Specifications N Height
0.88 in | 22.23 mm
Specifications Orifice Diameter
0.438 in | 11.13 mm
Specifications Outside Diameter Tube
3/4 in | 19.05 mm
Specifications Pressure Rating At Room Temperature
15000 psi | 1034 bar
Specifications Rated Cv
2.41
Specifications Stem Type
REG
Specifications Tubing Engagement Depth
1.00 in | 25.4 mm
Specifications Valve Pattern
2-Way Angle / Replaceable Seat
Valve Maintenance 0
Repair Kits:add "R" to the front of valve catalog number for proper repair kit. (Example: R50Y9071)Valve Bodies:Valve bodies are available. Order using the eight (8) digit part number found on the valve drawing or contact your Sales Representative for information.Consult your Autoclave representative for pricing on repair kits and valve bodies. Refer to the Tools, Installation, Operation and Maintenance section for proper maintenance procedures.
Valve Options 0
Extreme TemperaturesStandard Autoclave valves with Teflon packing may be operated to 450°F (232°C). High temperature packing is available for service from 0°F (-17.8°C) to 600°F (316°C) by adding the following suffixes to catalog order number.TG standard valve with Teflon glass packing to 600°F (316°C).B standard valve with cryogenic trim materials and Teflon packing to -100°F (-73°C).
