Petersen Muni-Ball 130-9 Series 30" Pillow-Style Plug with By-Pass
Petersen Muni-Ball 130-9 Series 30" Pillow-Style Plug with By-Pass
SKU:TYP-7eb1be
Versatile 30" Pillow-Style Plug for sewer flow blocking and air testing, made of heavy-duty urethane rubber with convenient features for monitoring and maintenance.
Regular price
$299.99
Regular price
Sale price
$299.99
Unit price
per
Initiate Order
Petersen Muni-Ball 130-9 Series 30" Pillow-Style Plug with By-Pass
$299.99
Quantity: 1
Claim Your Seller Account
Petersen Muni-Ball 130-9 Series 30" Pillow-Style Plug with By-Pass
$299.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Petersen Muni-Ball 130-9 Series 30" Pillow-Style Plug with By-Pass is a versatile solution for sewer flow blocking and air testing. Constructed from heavy-duty elastic urethane, this plug is lightweight, chemical-resistant, and fits through small openings. Equipped with tether bars, a 30' inflation hose, read-back line, and gauge, it offers easy monitoring and maintenance. With a bypass feature and repair kit availability, this plug ensures reliability and durability in various pipe systems.
Product Specifications
Additional Information Additional Information

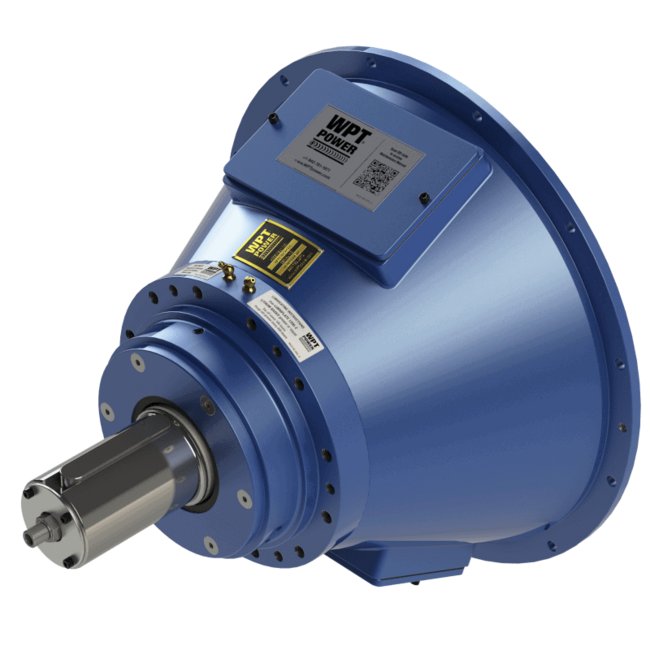

If you are looking for an innovative, high capacity power take-off, look no further than the Prototype 2.With its versatile design, dry clutch and top-of-the-line spherical roller Parings, the Type 2 PTO has Peen field-proven in many sideload applications.The Benefits of the WPT® Type 2 include the potential for remote engagement, self-adjusting clutch, with air or hydraulic actuation. Heavy-duty gear tooth friction discs are standard on 14" and 18" models. Bearings are lubricated with either grease or oil.Customers needing maximum capacity in a small package will find the Type 2 an outstanding PTO for their applications.
Features Features
Self-adjusting clutch packCompatible with Python® and HPU hydraulic starting optionsBearings are lubricated with either grease or oilStandard, HD Molded, and HD Laminated friction options
Note Note
Flange output shafts available. Contact WPT® Applications Engineering for assistance.
Output Shaft Diameter
3.542 in | 90.00 mm
Output Shaft Dimension C
5-11/16 in | 144.0 mm
Output Shaft Keyway
25 x 10.7 mm
Specifications Allowable Sideload At 16 Inch In And 406 Millimet
5300 lbf | 2400 kgf
Specifications Allowable Sideload At 19 Inch In And 483 Millimet
3500 lbf | 3800 lbf | 1600 kgf | 1700 kgf

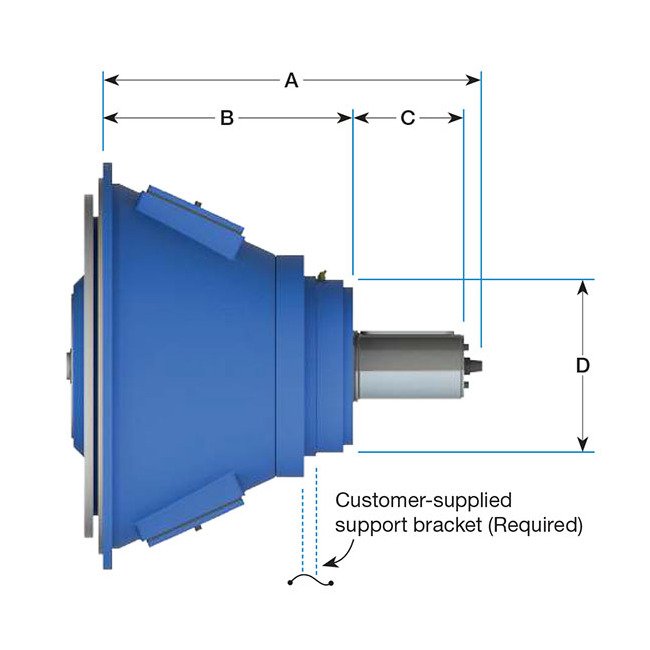

Specifications Dimension A
20-7/16 in | 518.6 mm
Specifications Dimension B
20-7/16 in | 518.6 mm
Specifications Dimension D
9 in | 228.6 mm

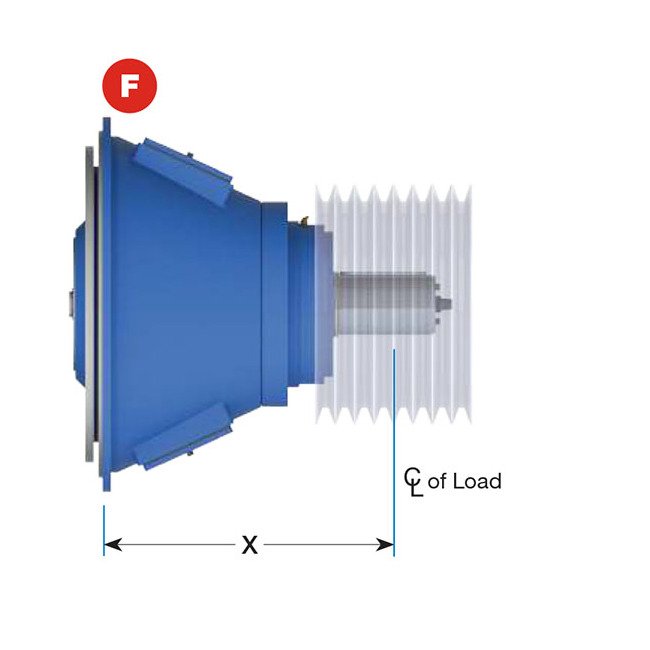

Specifications Distance X
16 in | 19 in | 406 mm | 483 mm
Specifications Maximum Input Torque
3800 lbf.ft | 5100 N.m
Specifications Maximum Speed
2300 rpm
Specifications Revolution Per Minute
1800 | 2300
Specifications Sae Housings
1 | 2
