Petersen Yellow Color Output Hose - 3/8" ID x 35'

Petersen Yellow Color Output Hose - 3/8" ID x 35'

HIG-e1d668

Premium Petersen Yellow Output Hose - 3/8" ID x 35', ideal for high pressure applications. All-weather design with safety features.

$49.99
$49.99
Sale

Initiate Order

Petersen Yellow Color Output Hose - 3/8" ID x 35'

Petersen Yellow Color Output Hose - 3/8" ID x 35'

$49.99

Quantity: 1

Claim Your Seller Account

Petersen Yellow Color Output Hose - 3/8" ID x 35'

Petersen Yellow Color Output Hose - 3/8" ID x 35'

$49.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
The Petersen Yellow Color Output Hose is a high-quality inflation hose designed for durability and performance. With a 3/8" inside diameter and 35' length, this all-weather hose features a shut-off and pressure relief valve for added safety and control. It comes with 1/4 Inch safety coupler and nipple connections, making it compatible with 161-0 Series High Pressure Flat Form Bags. Ideal for various industrial applications, this hose ensures reliable performance in demanding environments.

Product Specifications

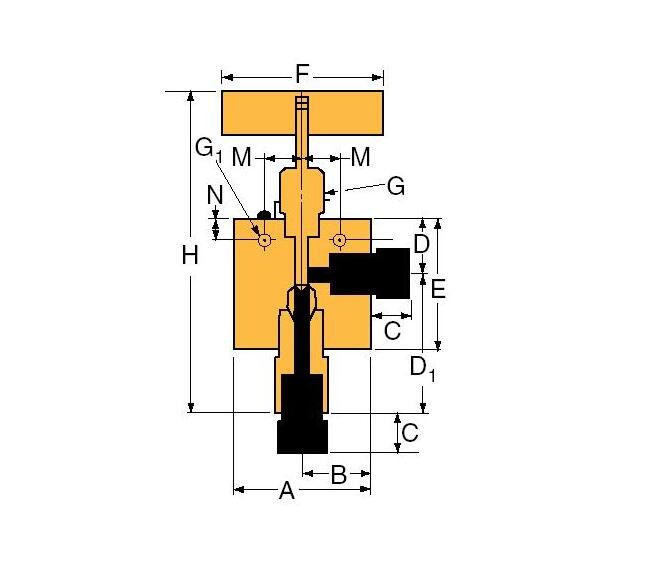

Specifications A Width
2.50 in | 63.50 mm
Specifications Block Thickness
1.00 in | 25.40 mm
Specifications B Length
1.25 in | 31.75 mm
Specifications Connection Type
SW500
Specifications C Length
0.53 in | 13.46 mm
Specifications D1 Height
2.50 in | 63.50 mm
Specifications D Height
1.75 in | 44.45 mm
Specifications E Height
3.25 in | 82.55 mm
Specifications F Length
4.00 in | 101.60 mm
Specifications G1 Bracket Mounting Hole Size
0.34 in | 8.64 mm
Specifications G Packing Gland Mounting Hole Drill Size
1.00 in | 25.40 mm
Specifications H Height
7.51 in | 190.75 mm
Specifications M Length
0.69 in | 17.53 mm
Specifications N Height
0.50 in | 12.70 mm
Specifications Orifice Diameter
0.375 in | 9.53 mm
Specifications Outside Diameter Tube
1/2 in | 12.70 mm
Specifications Pressure Rating At Room Temperature
10000 psi | 690 bar
Specifications Rated Cv
1.90
Specifications Stem Type
VEE
Specifications Tubing Engagement Depth
0.81 in | 20.6 mm
Specifications Valve Pattern
2-Way Angle / Replaceable Seat
Valve Maintenance Valve Maintenance
Repair Kits:add "R" to the front of valve catalog number for proper repair kit. (Example: RSW4071)Valve Bodies:Valve bodies are available. Order using the eight (8) digit part number found on the valve drawing or contact your Sales Representative for information.Consult your Autoclave representative for pricing on repair kits and valve bodies. Refer to the Tools, Installation, Operation and Maintenance section for proper maintenance procedures.
Valve Options Valve Options
Extreme TemperaturesStandard Autoclave valves with Teflon packing may be operated to 450°F (232°C). High temperature packing and/or extended stuffing box is available for service from 0°F (-17.8°C) to 650°F (343°C) by adding the following suffixes to catalog order number.†TG standard valve with Teflon glass packing to 600°F (316°C).GY standard valve with graphite braided yarn packing to 650°F (343°C).† Autoclave Engineers does not recommend compression sleeve connections below 0°F (-17.8°C) or above 650°F (343°C). For additional valve options, contact your Sales Representative.
