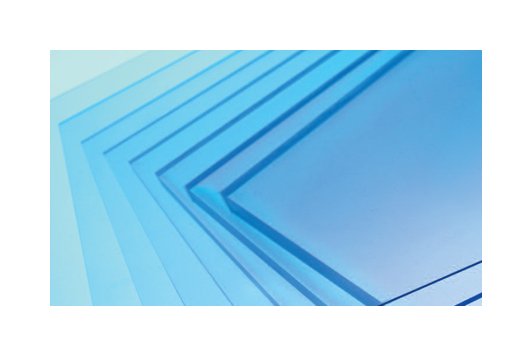

PETG/Co-polyester Sheet - General Purpose 24x48x0.500
PETG/Co-polyester Sheet - General Purpose 24x48x0.500
SKU:SHA-8b8534
Versatile PETG/Co-polyester Sheet for Point of Purchase & Institutional Applications
Regular price
$64.99
Regular price
Sale price
$64.99
Unit price
per
Initiate Order
PETG/Co-polyester Sheet - General Purpose 24x48x0.500
$64.99
Quantity: 1
Claim Your Seller Account
PETG/Co-polyester Sheet - General Purpose 24x48x0.500
$64.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The PETG/Co-polyester Sheet - General Purpose is a versatile transparent thermoplastic sheet ideal for point of purchase and institutional applications. Offering superior impact strength over acrylic and cost-effectiveness compared to polycarbonate, this sheet allows for deep draws, complex die-cuts, and precise molded-in details without compromising structural integrity. Easy to fabricate, form, and decorate, it can be easily bonded using adhesives, ultrasonic welding, or rivets. With excellent light transmission, high tensile strength, and low water absorption, this PETG sheet is a reliable choice for a diverse range of projects.
Product Specifications
Specifications Coefficient Of Linear Thermal Expansion
3.3 x 10-5 in/in/ºF
Specifications Compressive Strength
8000 psi
Specifications Dielectric Strength Astm D149
410 V/m
Specifications Flexural Modulus 0125 Astm D790
310000 psi
Specifications Flexural Strength 248f120c
11200 psi
Specifications Forming Temperature
280 - 320 ºF
Specifications Glass Transition Temperature
178 ºF
Specifications Hardness Rockwell Astm D785
R115
Specifications Heat Deflection Temperature At 264 Psi
157 ºF
Specifications Heat Deflection Temperature At 66 Psi
164 ºF
Specifications Izod Impact Strength Notched At 0125 At 73 Astm D
1.7 ft·lb/in
Specifications Light Transmission Average 0125 Disc
86 %
Specifications Optional Sheet Size
12 x 12 | 12 x 48 | 48 x 120 | 60 x 96 | 72 x 120 | 72 x 96
Specifications Sheet Size
24 x 48 in
Specifications Specific Gravity Astm D792
1.27
Specifications Tensile Modulus
320000 psi
Specifications Tensile Strength
7700 psi
Specifications Thickness
0.500 in
Specifications Tolerance
± 0.025 in
Specifications Water Absorption Equilibrium 24 Hours Astm D570
0.2 %
Specifications Weight
3.30 lb/ft²
