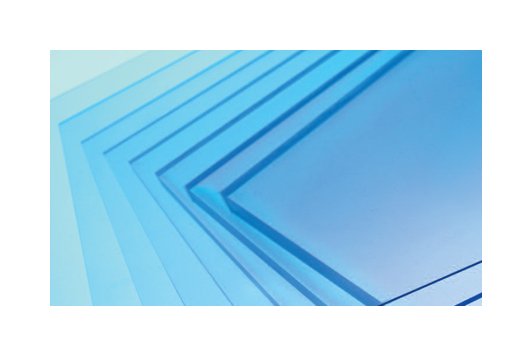

PETG/Co-polyester Sheet - Impact-Resistant Transparent Material
PETG/Co-polyester Sheet - Impact-Resistant Transparent Material
SKU:SHA-563349
Versatile PETG/Co-polyester Sheet for impact-resistant applications. Easy to customize and fabricate for diverse uses.
Regular price
$34.99
Regular price
Sale price
$34.99
Unit price
per
Initiate Order
PETG/Co-polyester Sheet - Impact-Resistant Transparent Material
$34.99
Quantity: 1
Claim Your Seller Account
PETG/Co-polyester Sheet - Impact-Resistant Transparent Material
$34.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The PETG/Co-polyester Sheet is a versatile thermoplastic that excels in impact strength, suitable for a range of applications. Outperforming acrylic, it offers cost efficiency compared to polycarbonate. It allows for deep draws, precise molding, and complex die-cuts without compromising structural integrity. Easily fabricated, bonded, and decorated, it is ideal for point of purchase displays. The sheets come with protective masking and are customizable to various sizes upon request.
Product Specifications
Specifications Coefficient Of Linear Thermal Expansion
3.3 x 10-5 in/in/ºF
Specifications Compressive Strength
8000 psi
Specifications Dielectric Strength Astm D149
410 V/m
Specifications Flexural Modulus 0125 Astm D790
310000 psi
Specifications Flexural Strength 248f120c
11200 psi
Specifications Forming Temperature
280 - 320 ºF
Specifications Glass Transition Temperature
178 ºF
Specifications Hardness Rockwell Astm D785
R115
Specifications Heat Deflection Temperature At 264 Psi
157 ºF
Specifications Heat Deflection Temperature At 66 Psi
164 ºF
Specifications Izod Impact Strength Notched At 0125 At 73 Astm D
1.7 ft·lb/in
Specifications Light Transmission Average 0125 Disc
86 %
Specifications Optional Sheet Size
12 x 12 | 12 x 48 | 48 x 120 | 60 x 96 | 72 x 120 | 72 x 96
Specifications Sheet Size
24 x 48 in
Specifications Specific Gravity Astm D792
1.27
Specifications Tensile Modulus
320000 psi
Specifications Tensile Strength
7700 psi
Specifications Thickness
0.177 in
Specifications Tolerance
± 0.009 in
Specifications Water Absorption Equilibrium 24 Hours Astm D570
0.2 %
Specifications Weight
1.17 lb/ft²
