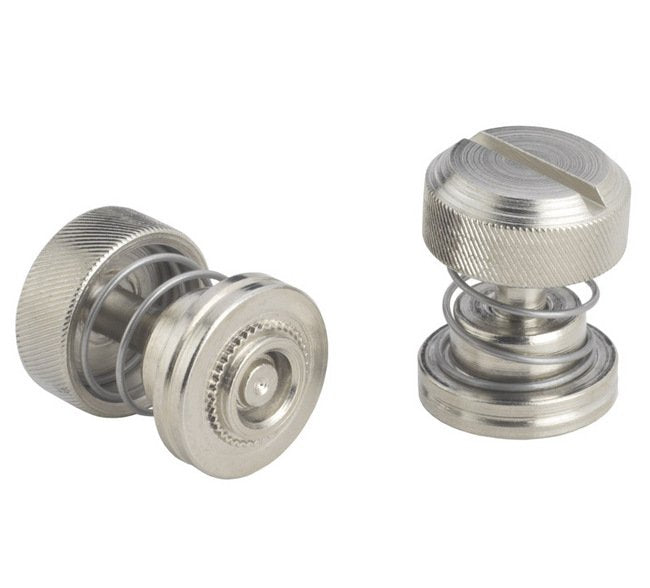

PF Series Captive Panel Screw with Low Profile Knob - Metric

Name: PF Series Captive Panel Screw with Low Profile Knob - Metric
Brand: Hi-Tech Fasteners, Inc.
SKU: PEM-ad595e
Price: 24.99 USD
Availability: OutOfStock

SKU:PEM-ad595e

Enhanced PF Series Captive Panel Screw for efficient metal sheet fastening with ANSI/ASME B1.13M thread specifications. Durable carbon steel construction and corrosion-resistant finish for reliable performance.

$24.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

Experience superior functionality with the PF Series Captive Panel Screw featuring a low-profile design and spring-loaded mechanism. Made of carbon steel and 300 series stainless steel, this screw ensures strength and durability. With ANSI/ASME B1.13M thread specifications, it meets rigorous industry standards for metal sheet fastening. The bright nickel finish offers corrosion resistance, while optional black nitride finish adds a sleek look. Ideal for applications requiring HRB 60 or less sheet hardness.

Product Specifications

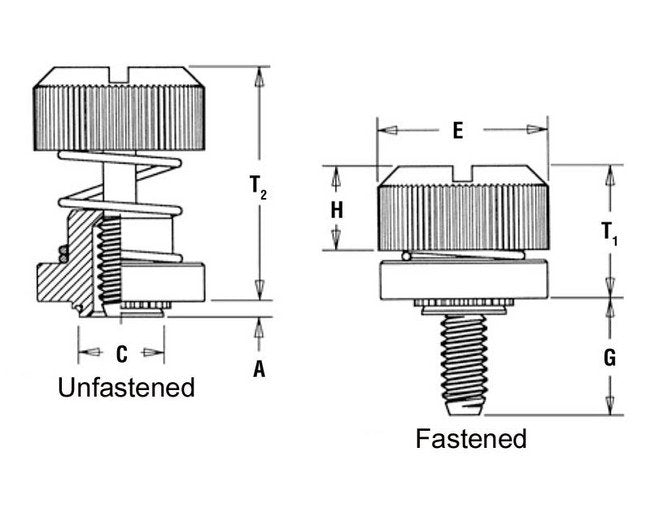

Specifications A Shank Max

0.97 mm

Specifications Cad Supplier

PennEngineeringÂ® (PEMÂ®)

Specifications Cad View

Unfastened

Specifications C Max

6.38 mm

Specifications E 025

11.89 mm

Specifications Finish Retainer

Bright Nickel over Copper Flash per ASTM B689

Specifications Finish Screw

Bright nickel over copper flash per ASTM B689

Specifications Finish Spring

Natural Finish

Specifications For Use In Sheet Hardness

HRB 60 or Less (Hardness Rockwell âBâ Scale)HB 107 or Less (Hardness Brinell)

Specifications G 04

7.62 mm

Specifications Hole Size In Sheet 008

6.4 mm

Specifications H 013

5.26 mm

Specifications Material Retainer

Carbon Steel

Specifications Material Screw

Carbon Steel

Specifications Material Spring

300 Series Stainless Steel

Specifications Min Dist Hole Cl To Edge

7.37 mm

Specifications Min Sheet Thickness

1 mm

Specifications Optional Finish

Screw â Black NitrideRetainer â Black Nitride

Specifications Screw Length Code

Specifications T1 Max

8.38 mm

Specifications T2 Nom

15.24 mm

Specifications Thread Code

Specifications Thread Size X Pitch

M4 x 0.7

Specifications Thread Specification

ANSI/ASME B1.13M, 6g

Specifications Type

PF31
