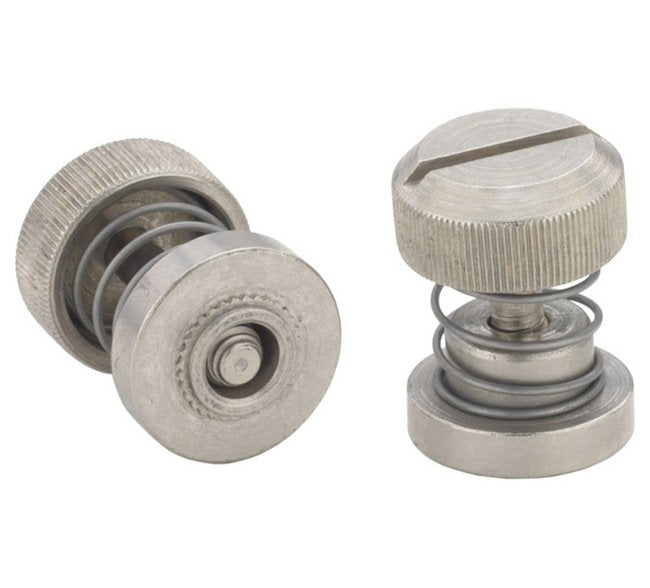

PF Series Low Profile Knob Captive Panel Screw

Name: PF Series Low Profile Knob Captive Panel Screw
Brand: Hi-Tech Fasteners, Inc.
SKU: PEM-ad6df4
Price: 12.99 USD
Availability: OutOfStock

SKU:PEM-ad6df4

Experience convenience and reliability with the ANSI B1.1 compliant PF Series Low Profile Knob Captive Panel Screw for metal panels.

$12.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The PF Series Low Profile Knob Captive Panel Screw is engineered with precision to meet diverse functional and aesthetic needs. Featuring a low-profile design and a large, slotted head for easy tool or finger operation, this screw offers exceptional convenience. With specifications meeting ANSI B1.1 standards, including specific material and finish requirements, this screw ensures reliable performance and longevity in various applications. Ideal for metal sheets with thicknesses ranging from 0.060 in to 0.249 in, this screw is a versatile solution for securing panels with ease and efficiency.

Product Specifications

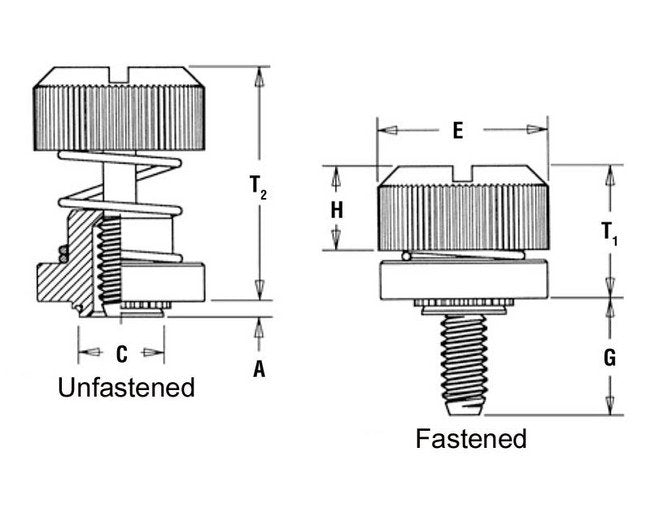

Specifications A Shank Max

.058 in

Specifications Cad Supplier

PennEngineeringÂ® (PEMÂ®)

Specifications Cad View

Unfastened

Specifications C Max

.249 in

Specifications E 010

.468 in

Specifications Finish Retainer

Bright Nickel over Copper Flash per ASTM B689

Specifications Finish Screw

Bright nickel over copper flash per ASTM B689

Specifications Finish Spring

Natural Finish

Specifications For Use In Sheet Hardness

HRB 60 or Less (Hardness Rockwell âBâ Scale)HB 107 or Less (Hardness Brinell)

Specifications G 015

.300 in

Specifications Hole Size In Sheet 0003 0000

.250 in

Specifications H 005

.207 in

Specifications Material Retainer

Carbon Steel

Specifications Material Screw

Carbon Steel

Specifications Material Spring

300 Series Stainless Steel

Specifications Min Dist Hole Cl To Edge

.290 in

Specifications Min Sheet Thickness

.060 in

Specifications Optional Finish

Screw â Black NitrideRetainer â Black Nitride

Specifications Screw Length Code

Specifications T1 Max

.330 in

Specifications T2 Nom

.600 in

Specifications Thread Code

832

Specifications Thread Size

.164-32 (#8;-32)

Specifications Thread Specification

ANSI B1.1, 2A

Specifications Type

PF32
