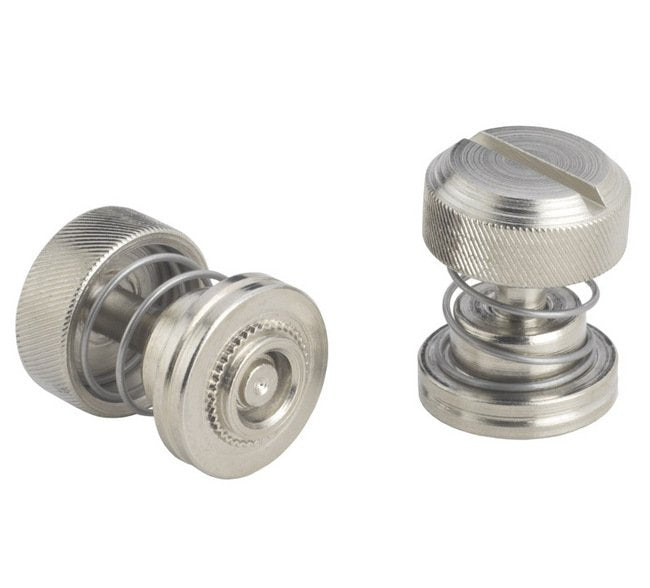

PF31 Low Profile Knob Captive Panel Screw - Metric
PF31 Low Profile Knob Captive Panel Screw - Metric
SKU:PEM-8b2a8f
Meet various functional and cosmetic requirements with the PF31 Low Profile Knob Captive Panel Screw - Metric. Easy tool or finger operation for secure fastening.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
PF31 Low Profile Knob Captive Panel Screw - Metric
$24.99
Quantity: 1
Claim Your Seller Account
PF31 Low Profile Knob Captive Panel Screw - Metric
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The PF31 Low Profile Knob Captive Panel Screw is engineered to meet a variety of functional and cosmetic requirements. Featuring a convenient large slotted head for easy tool or finger operation, this screw ensures secure fastening in metal sheets and panels. Crafted with high-quality materials and finishes including carbon steel and stainless steel, it is designed for durability and resilience. With precise measurements and compliance with ANSI/ASME standards, this screw is ideal for use in government and institutional applications where quality and reliability are paramount.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Specifications A Shank Max
0.97 mm
Specifications Cad Supplier
PennEngineering® (PEM®)
Specifications Cad View
Unfastened
Specifications C Max
5.48 mm
Specifications E 025
10.31 mm
Specifications Finish Retainer
Bright Nickel over Copper Flash per ASTM B689
Specifications Finish Screw
Bright nickel over copper flash per ASTM B689
Specifications Finish Spring
Natural Finish
Specifications For Use In Sheet Hardness
HRB 60 or Less (Hardness Rockwell âBâ Scale)HB 107 or Less (Hardness Brinell)
Specifications G 04
7.62 mm
Specifications Hole Size In Sheet 008
5.5 mm
Specifications H 013
5.13 mm
Specifications Material Retainer
Carbon Steel
Specifications Material Screw
Heat-Treated Carbon Steel
Specifications Material Spring
300 Series Stainless Steel
Specifications Min Dist Hole Cl To Edge
6.60 mm
Specifications Min Sheet Thickness
1 mm
Specifications Optional Finish
Screw â Black NitrideRetainer â Black Nitride
Specifications Screw Length Code
30
Specifications T1 Max
8.26 mm
Specifications T2 Nom
15.11 mm
Specifications Thread Code
M3
Specifications Thread Size X Pitch
M3 x 0.5
Specifications Thread Specification
ANSI/ASME B1.13M, 6g
Specifications Type
PF31
