PF31 Low Profile Knob Captive Panel Screw - Unified
PF31 Low Profile Knob Captive Panel Screw - Unified
SKU:PEM-fddf08
High-quality PF31 Low Profile Knob Captive Panel Screw designed for aesthetics and ease of operation in metal sheet applications.
Regular price
$12.99
Regular price
Sale price
$12.99
Unit price
per
Initiate Order
PF31 Low Profile Knob Captive Panel Screw - Unified
$12.99
Quantity: 1
Claim Your Seller Account
PF31 Low Profile Knob Captive Panel Screw - Unified
$12.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

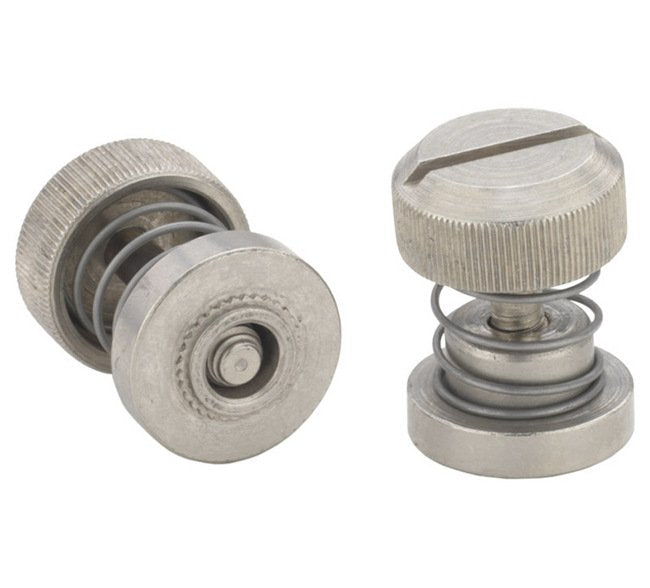

The PF31 Low Profile Knob Captive Panel Screw is designed to meet both functional and aesthetic needs in metal sheet applications. With a convenient large slotted head for easy tool or finger operation, this screw offers a thread size of .164-32 (#8;-32) and is constructed of high-quality materials including carbon steel and 300 series stainless steel. The bright nickel and natural finishes provide durability and corrosion resistance. Compliant with ANSI B1.1, 2A thread specifications, this screw is ideal for use in sheets with hardness up to HRB 60 or HB 107. The PF31 screw also features optional black nitride finishes for added customization.
Product Specifications

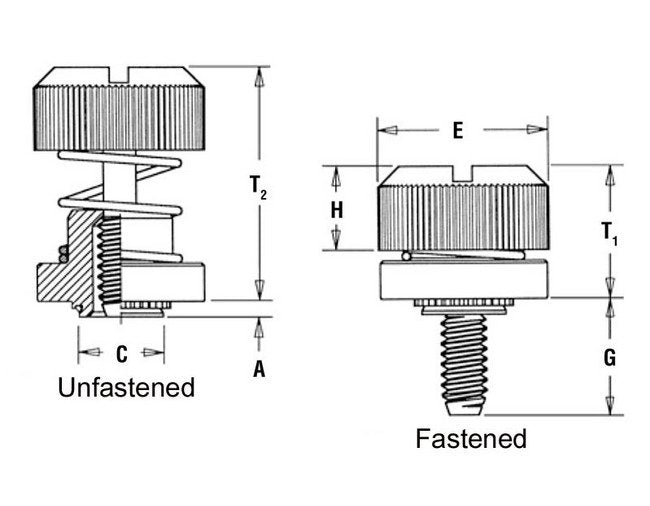

Specifications A Shank Max
0.038 in
Specifications Cad Supplier
PennEngineering® (PEM®)
Specifications Cad View
Unfastened
Specifications C Max
.249 in
Specifications E 010
.468 in
Specifications Finish Retainer
Bright Nickel over Copper Flash per ASTM B689
Specifications Finish Screw
Bright nickel over copper flash per ASTM B689
Specifications Finish Spring
Natural Finish
Specifications For Use In Sheet Hardness
HRB 60 or Less (Hardness Rockwell âBâ Scale)HB 107 or Less (Hardness Brinell)
Specifications G 015
.300 in
Specifications Hole Size In Sheet 0003 0000
.250 in
Specifications H 005
.207 in
Specifications Material Retainer
Carbon Steel
Specifications Material Screw
Carbon Steel
Specifications Material Spring
300 Series Stainless Steel
Specifications Min Dist Hole Cl To Edge
.290 in
Specifications Min Sheet Thickness
.040 in
Specifications Optional Finish
Screw â Black NitrideRetainer â Black Nitride
Specifications Screw Length Code
30
Specifications T1 Max
.330 in
Specifications T2 Nom
.600 in
Specifications Thread Code
832
Specifications Thread Size
.164-32 (#8;-32)
Specifications Thread Specification
ANSI B1.1, 2A
Specifications Type
PF31
