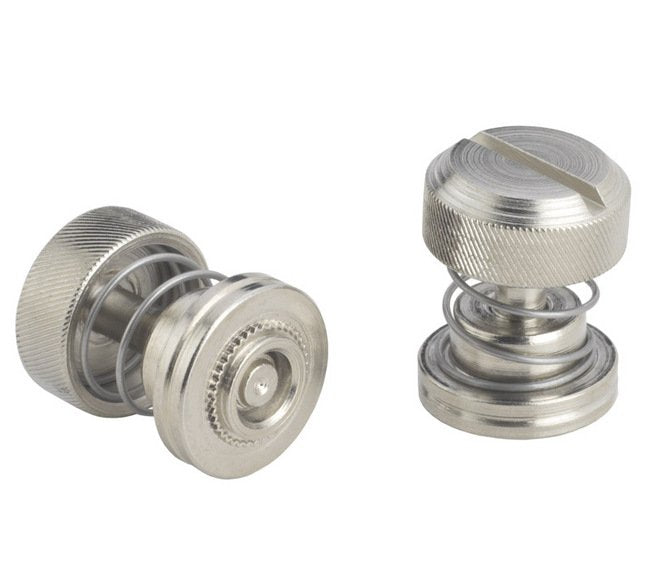

PF31 Metric Captive Panel Screw with Low Profile Knob
PF31 Metric Captive Panel Screw with Low Profile Knob
SKU:PEM-b11797
Durable PF31 Captive Panel Screw with low profile design for easy operation. ANSI/ASME B1.13M compliant for secure fastening.
Regular price
$12.99
Regular price
Sale price
$12.99
Unit price
per
Initiate Order
PF31 Metric Captive Panel Screw with Low Profile Knob
$12.99
Quantity: 1
Claim Your Seller Account
PF31 Metric Captive Panel Screw with Low Profile Knob
$12.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The PF31 Metric Captive Panel Screw features a low-profile design that meets various functional and aesthetic needs. Its large, slotted head allows for easy tool or finger operation. With a thread size of M4 x 0.7 and made of carbon steel and 300 series stainless steel, this screw is designed for durability and reliability. Compliant with ANSI/ASME B1.13M standards, this screw is ideal for fastening applications in metal sheets with hardness up to HRB 60 or HB 107. Trust in the quality and performance of this PEM® Brand Fastener.
Product Specifications
Specifications A Shank Max
0.97 mm
Specifications Cad Supplier
PennEngineering® (PEM®)
Specifications Cad View
Unfastened
Specifications C Max
6.38 mm
Specifications E 025
11.89 mm
Specifications Finish Retainer
Bright Nickel over Copper Flash per ASTM B689
Specifications Finish Screw
Bright nickel over copper flash per ASTM B689
Specifications Finish Spring
Natural Finish
Specifications For Use In Sheet Hardness
HRB 60 or Less (Hardness Rockwell âBâ Scale)HB 107 or Less (Hardness Brinell)
Specifications G 04
7.62 mm
Specifications Hole Size In Sheet 008
6.4 mm
Specifications H 013
5.26 mm
Specifications Material Retainer
Carbon Steel
Specifications Material Screw
Carbon Steel
Specifications Material Spring
300 Series Stainless Steel
Specifications Min Dist Hole Cl To Edge
7.37 mm
Specifications Min Sheet Thickness
1 mm
Specifications Screw Length Code
30
Specifications T1 Max
8.38 mm
Specifications T2 Nom
15.24 mm
Specifications Thread Code
M4
Specifications Thread Size X Pitch
M4 x 0.7
Specifications Thread Specification
ANSI/ASME B1.13M, 6g
Specifications Type
PF31
