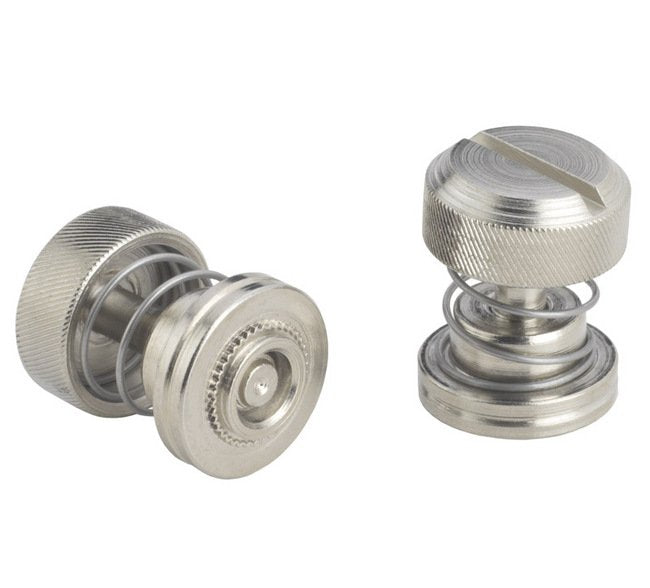

PF32 Metric Captive Panel Screw-Low Profile Knob
PF32 Metric Captive Panel Screw-Low Profile Knob
SKU:PEM-e9d18a
High-quality PF32 Metric Captive Panel Screw-Low Profile Knob designed for durability and ease of use. Compliant with ASTM standards.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
PF32 Metric Captive Panel Screw-Low Profile Knob
$24.99
Quantity: 1
Claim Your Seller Account
PF32 Metric Captive Panel Screw-Low Profile Knob
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The PF32 Metric Captive Panel Screw-Low Profile Knob is expertly designed to meet a variety of functional and aesthetic requirements. Featuring a low-profile design and a convenient large slotted head for easy tool or finger operation, this screw ensures durability and ease of use. Made from high-quality materials including carbon steel and 300 series stainless steel, with finishes per ASTM B689 standards, it guarantees reliability and longevity.
Product Specifications
Specifications A Shank Max
1.48 mm
Specifications Cad Supplier
PennEngineering® (PEM®)
Specifications Cad View
Unfastened
Specifications C Max
9.48 mm
Specifications E 025
15.88 mm
Specifications Finish Retainer
Bright Nickel over Copper Flash per ASTM B689
Specifications Finish Screw
Bright nickel over copper flash per ASTM B689
Specifications Finish Spring
Natural Finish
Specifications For Use In Sheet Hardness
HRB 60 or Less (Hardness Rockwell âBâ Scale)HB 107 or Less (Hardness Brinell)
Specifications G 04
8.89 mm
Specifications Hole Size In Sheet 008
9.50 mm
Specifications H 013
6.12 mm
Specifications Material Retainer
Carbon Steel
Specifications Material Screw
Carbon Steel
Specifications Material Spring
300 Series Stainless Steel
Specifications Min Dist Hole Cl To Edge
9.65 mm
Specifications Min Sheet Thickness
1.50 mm
Specifications Screw Length Code
35
Specifications T1 Max
9.78 mm
Specifications T2 Nom
17.15 mm
Specifications Thread Code
M6
Specifications Thread Size X Pitch
M6 x 1
Specifications Thread Specification
ANSI/ASME B1.13M, 6g
Specifications Type
PF32
