PF7M Captive Panel Screw
PF7M Captive Panel Screw
SKU:PEM-c5e36e
Securely fasten panels with the PF7M Captive Panel Screw featuring self-clinching design and corrosion-resistant finish. ASME B1.1 compliant.
Regular price
$12.99
Regular price
Sale price
$12.99
Unit price
per
Initiate Order
PF7M Captive Panel Screw
$12.99
Quantity: 1
Claim Your Seller Account
PF7M Captive Panel Screw
$12.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

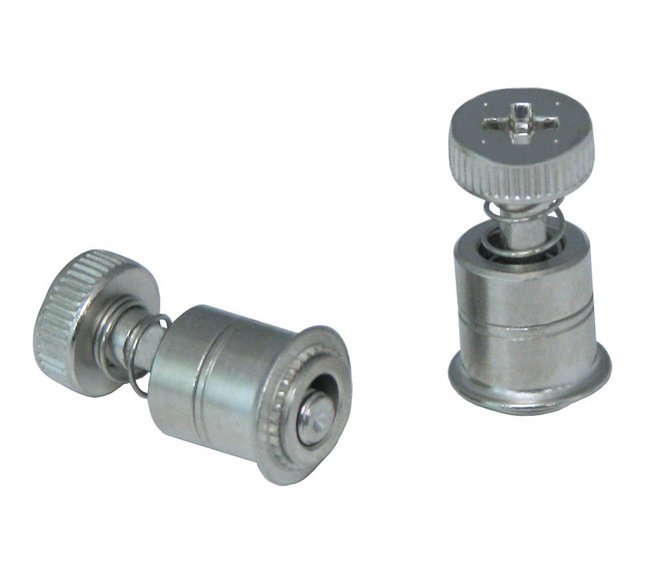

The PF7M Captive Panel Screw features a self-clinching mounting design for high pushout resistance, flush installation on the back side of panels, and no need for special hole preparation. With specifications meeting ASME B1.1 standards, this screw is made of heat-treated carbon steel and 300 series stainless steel for durability and reliability in various applications. The bright nickel over copper flash finish adds corrosion resistance, making it ideal for use in metal sheets up to HRB 60 hardness. Trust the PF7M for secure fastening and easy installation.

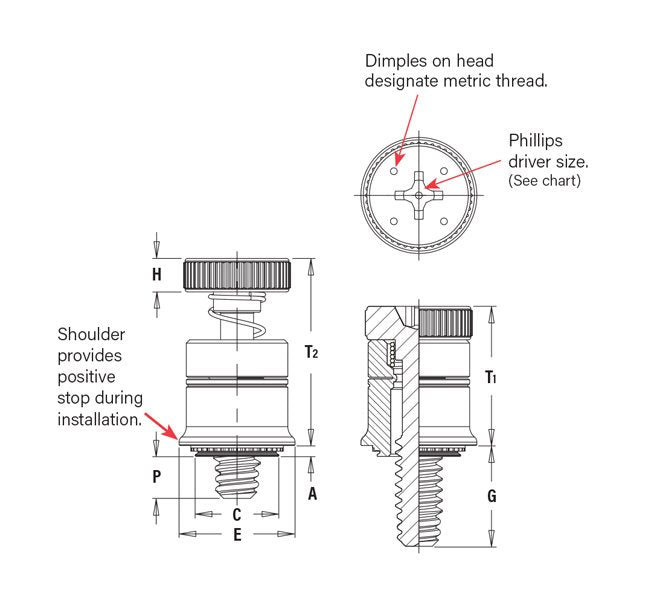

Product Specifications
Specifications A Shank Max
.036 in
Specifications Cad Supplier
PennEngineering® (PEM®)
Specifications Cad View
Unfastened
Specifications C Max
.311 in
Specifications E 010
.405 in
Specifications Finish Retainer
Bright nickel over copper flash
Specifications Finish Screw
Bright nickel over copper flash
Specifications Finish Spring
Natural Finish
Specifications For Use In Sheet Hardness
HRB 60 or Less (Hardness Rockwell âBâ Scale) / HB 107 or Less (Hardness Brinell)
Specifications G 025
.240 in
Specifications Hole Size In Sheet 0003 0000
.312 in
Specifications H 010
.120 in
Specifications Material Retainer
Carbon Steel
Specifications Material Screw
Heat-Treated Carbon Steel
Specifications Material Spring
300 Series Stainless Steel
Specifications Min Dist Hole Cl To Edge
.330 in
Specifications Min Sheet Thickness
.036 in
Specifications P 025
.000 in
Specifications Screw Length Code
0
Specifications T1 Nom
.430 in
Specifications T2 Nom
.630 in
Specifications Thread Code
832
Specifications Thread Size
.164-32 (#8;-32)
Specifications Thread Specification
ASME B1.1, 2A
Specifications Type
PF7M
