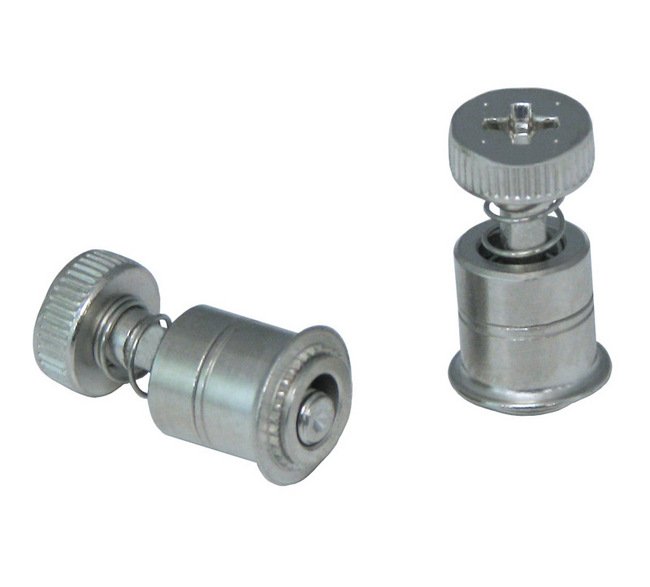

• PF7M Captive Panel Screw Self-Clinching - Image 1
  • PF7M Captive Panel Screw Self-Clinching - Image 2
1 2
Hi-Tech Fasteners, Inc. →

PF7M Captive Panel Screw Self-Clinching

PF7M Captive Panel Screw Self-Clinching

PEM-91bc3f

Premium PF7M Captive Panel Screw for high pushout resistance and easy installation on metal sheets. Durable construction with corrosion-resistant finish.

$3.49
$3.49
Sale

Initiate Order

PF7M Captive Panel Screw Self-Clinching

PF7M Captive Panel Screw Self-Clinching

$3.49

Quantity: 1

Claim Your Seller Account

PF7M Captive Panel Screw Self-Clinching

PF7M Captive Panel Screw Self-Clinching

$3.49

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
The PF7M Captive Panel Screw features a self-clinching mounting design ensuring high pushout resistance, ideal for metal sheets and panels in various applications. With a flush installation on the back side of panels and no special hole preparation required, it offers ease of use and efficient assembly. Constructed from durable materials, including heat-treated carbon steel and 300 series stainless steel, it meets stringent industry standards for reliability and longevity. The bright nickel finish enhances corrosion resistance, making it suitable for a wide range of environments.

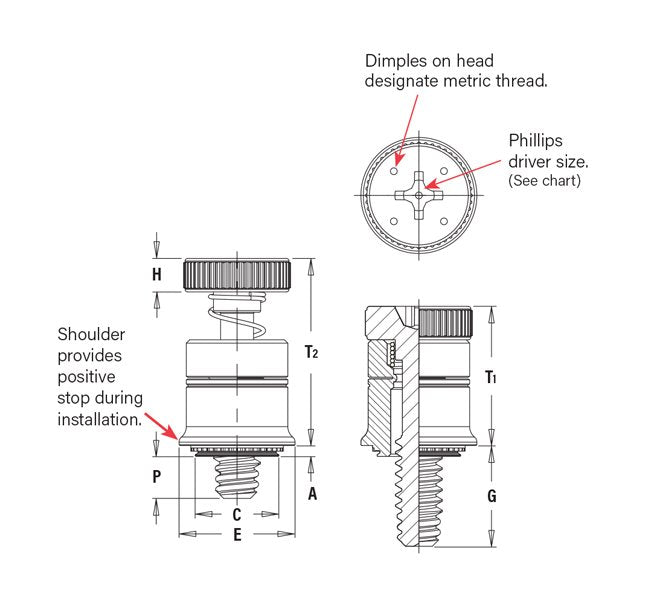

Product Specifications

Specifications A Shank Max
.036 in
Specifications Cad Supplier
PennEngineering® (PEM®)
Specifications Cad View
Unfastened
Specifications C Max
.218 in
Specifications E 010
.310 in
Specifications Finish Retainer
Bright nickel over copper flash
Specifications Finish Screw
Bright nickel over copper flash
Specifications Finish Spring
Natural Finish
Specifications For Use In Sheet Hardness
HRB 60 or Less (Hardness Rockwell “B” Scale) / HB 107 or Less (Hardness Brinell)
Specifications G 025
.270 in
Specifications Hole Size In Sheet 0003 0000
.219 in
Specifications H 010
.100 in
Specifications Material Retainer
Carbon Steel
Specifications Material Screw
Heat-Treated Carbon Steel
Specifications Material Spring
300 Series Stainless Steel
Specifications Min Dist Hole Cl To Edge
.28 in
Specifications Min Sheet Thickness
.036 in
Specifications P 025
.065 in
Specifications Screw Length Code
1
Specifications T1 Nom
.38 in
Specifications T2 Nom
.55 in
Specifications Thread Code
440
Specifications Thread Size
.112-40 (#4;-40)
Specifications Thread Specification
ASME B1.1, 2A
Specifications Type
PF7M
