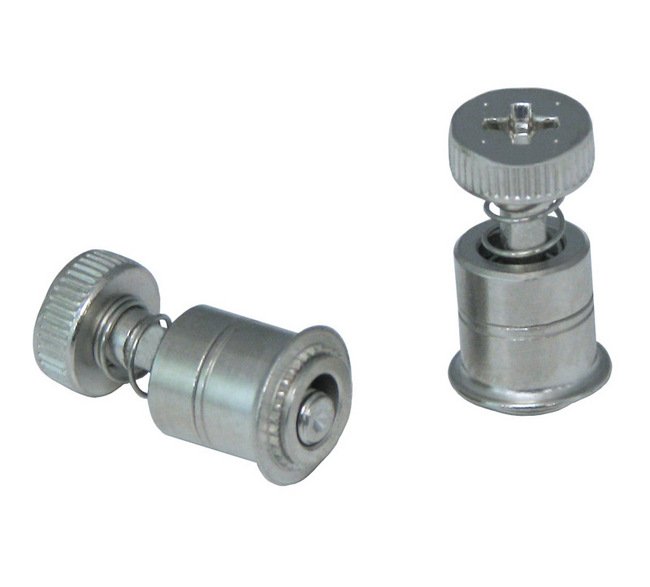

• PF7M Captive Panel Screw - Self-Clinching, Spring-loaded Head - Image 1

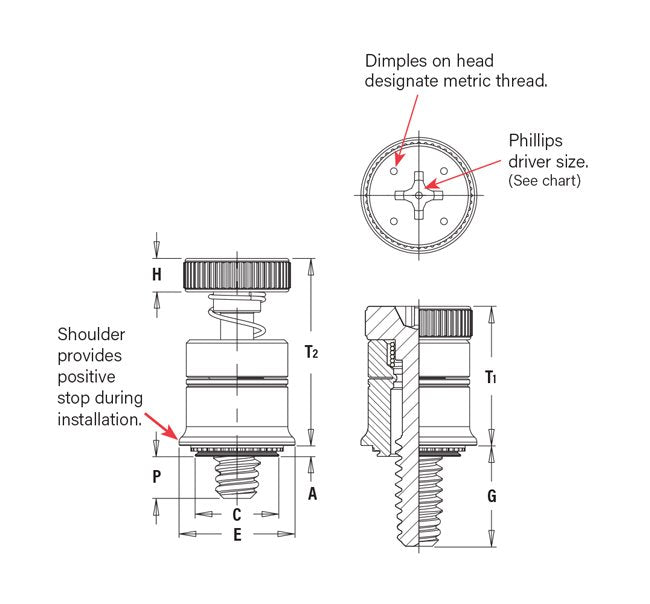

  • PF7M Captive Panel Screw - Self-Clinching, Spring-loaded Head - Image 2
1 2
Hi-Tech Fasteners, Inc. →

PF7M Captive Panel Screw - Self-Clinching, Spring-loaded Head

PF7M Captive Panel Screw - Self-Clinching, Spring-loaded Head

PEM-f182ce

Highly durable PF7M Captive Panel Screw with self-clinching, spring-loaded head for secure installations on metal sheets.

$29.99
$29.99
Sale

Initiate Order

PF7M Captive Panel Screw - Self-Clinching, Spring-loaded Head

PF7M Captive Panel Screw - Self-Clinching, Spring-loaded Head

$29.99

Quantity: 1

Claim Your Seller Account

PF7M Captive Panel Screw - Self-Clinching, Spring-loaded Head

PF7M Captive Panel Screw - Self-Clinching, Spring-loaded Head

$29.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
The PF7M Captive Panel Screw with a self-clinching, spring-loaded head is designed for high pushout resistance. Its flush installation on the panel's back side eliminates the need for special hole preparation. Featuring specifications such as thread size .164-32, material retention with heat-treated carbon steel, and 300 series stainless steel spring, this screw meets strict industry standards for durability and reliability. Ideal for metal sheets and panels, this screw ensures secure fastening and ease of installation.

Ready to Grow Without Cash Flow Constraints?

Get Net 30, 60, or 90 day terms at 0% interest on any purchase

Check Your Eligibility Now
Ready to Grow Without Cash Flow Constraints?

Product Specifications

Specifications A Shank Max
.036 in
Specifications Cad Supplier
PennEngineering® (PEM®)
Specifications Cad View
Unfastened
Specifications C Max
.311 in
Specifications E 010
.405 in
Specifications Finish Retainer
Bright nickel over copper flash
Specifications Finish Screw
Bright nickel over copper flash
Specifications Finish Spring
Natural Finish
Specifications For Use In Sheet Hardness
HRB 60 or Less (Hardness Rockwell “B” Scale) / HB 107 or Less (Hardness Brinell)
Specifications G 025
.300 in
Specifications Hole Size In Sheet 0003 0000
.312 in
Specifications H 010
.120 in
Specifications Material Retainer
Carbon Steel
Specifications Material Screw
Heat-Treated Carbon Steel
Specifications Material Spring
300 Series Stainless Steel
Specifications Min Dist Hole Cl To Edge
.330 in
Specifications Min Sheet Thickness
.036 in
Specifications P 025
.065 in
Specifications Screw Length Code
1
Specifications T1 Nom
.430 in
Specifications T2 Nom
.630 in
Specifications Thread Code
832
Specifications Thread Size
.164-32 (#8;-32)
Specifications Thread Specification
ASME B1.1, 2A
Specifications Type
PF7M
