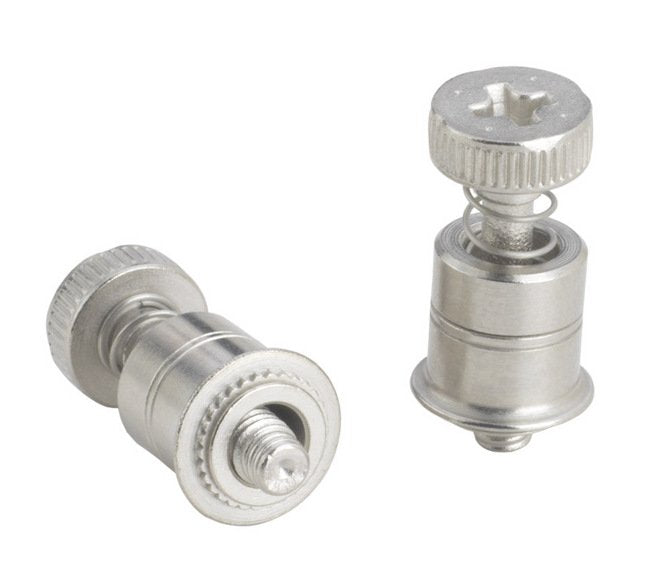

PF7M Self-Clinching Captive Panel Screw - Metric M3 x 0.5
PF7M Self-Clinching Captive Panel Screw - Metric M3 x 0.5
SKU:PEM-43937e
Securely fasten metal panels with the PF7M Self-Clinching Captive Panel Screw. High pushout resistance and flush installation.
Regular price
$8.99
Regular price
Sale price
$8.99
Unit price
per
Initiate Order
PF7M Self-Clinching Captive Panel Screw - Metric M3 x 0.5
$8.99
Quantity: 1
Claim Your Seller Account
PF7M Self-Clinching Captive Panel Screw - Metric M3 x 0.5
$8.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The PF7M Self-Clinching Captive Panel Screw is designed for high pushout resistance and flush installation on metal panels without requiring special hole preparation. Constructed with heat-treated carbon steel screw and a 300 series stainless steel spring, this screw ensures secure fastening in sheets with thicknesses as low as 0.92mm. With a bright nickel finish for corrosion resistance, this screw complies with ASME B1.13M standards, making it ideal for industrial and institutional applications.

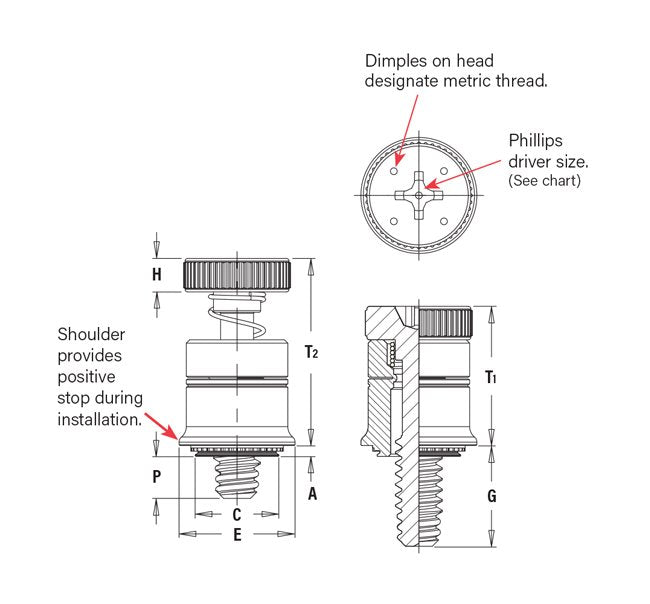

Product Specifications
Specifications A Shank Max
0.92 mm
Specifications Cad Supplier
PennEngineering® (PEM®)
Specifications Cad View
Unfastened
Specifications C Max
5.54 mm
Specifications E 025
7.87 mm
Specifications Finish Retainer
Bright nickel over copper flash
Specifications Finish Screw
Bright nickel over copper flash
Specifications Finish Spring
Natural Finish
Specifications For Use In Sheet Hardness
HRB 60 or Less (Hardness Rockwell âBâ Scale) / HB 107 or Less (Hardness Brinell)
Specifications G 064
6.86 mm
Specifications Hole Size In Sheet 008
5.56 mm
Specifications H 025
2.5 mm
Specifications Material Retainer
Carbon Steel
Specifications Material Screw
Heat-Treated Carbon Steel
Specifications Material Spring
300 Series Stainless Steel
Specifications Min Dist Hole Cl To Edge
7.11 mm
Specifications Min Sheet Thickness
0.92 mm
Specifications P 064
1.65 mm
Specifications Screw Length Code
1
Specifications T1 Nom
9.65 mm
Specifications T2 Nom
13.97 mm
Specifications Thread Code
M3
Specifications Thread Size
M3 x 0.5
Specifications Thread Specification
ASME B1.13M, 6g
Specifications Type
PF7M
