PF7MF Captive Panel Screw
PF7MF Captive Panel Screw
SKU:PEM-fd574e
Secure, low-force installation PF7MF Captive Panel Screw for flush, professional finishes on various panel thicknesses
Regular price
$9.99
Regular price
Sale price
$9.99
Unit price
per
Initiate Order
PF7MF Captive Panel Screw
$9.99
Quantity: 1
Claim Your Seller Account
PF7MF Captive Panel Screw
$9.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

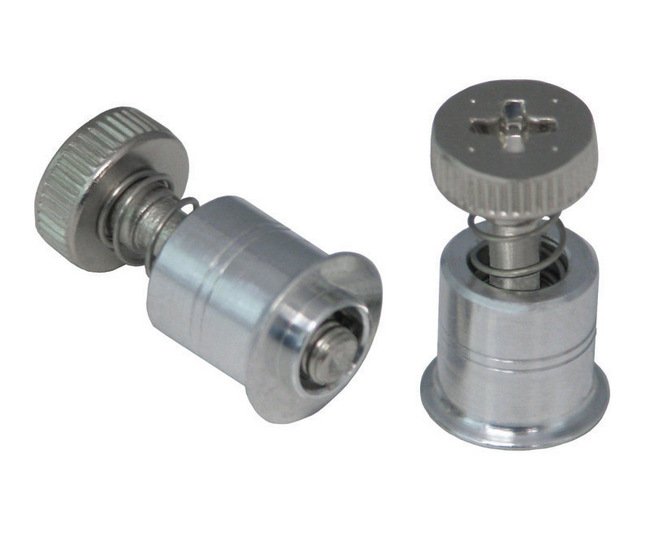

The PF7MF Captive Panel Screw is designed for close centerline-to-edge applications, ensuring a secure and reliable fastening solution. With a low installation force requirement, this screw can be installed into panels of varying hardness, providing versatility for different applications. Its spring-loaded, flare mount design enables flush installation on the backside of panels, ensuring a neat and professional finish. Crafted from high-quality materials like heat-treated carbon steel, aluminum, and 300 series stainless steel, this screw offers durability and longevity. The PF7MF meets ASME B1.1, 2A thread specifications, making it a reliable choice for applications requiring precision and adherence to standards.
Product Specifications

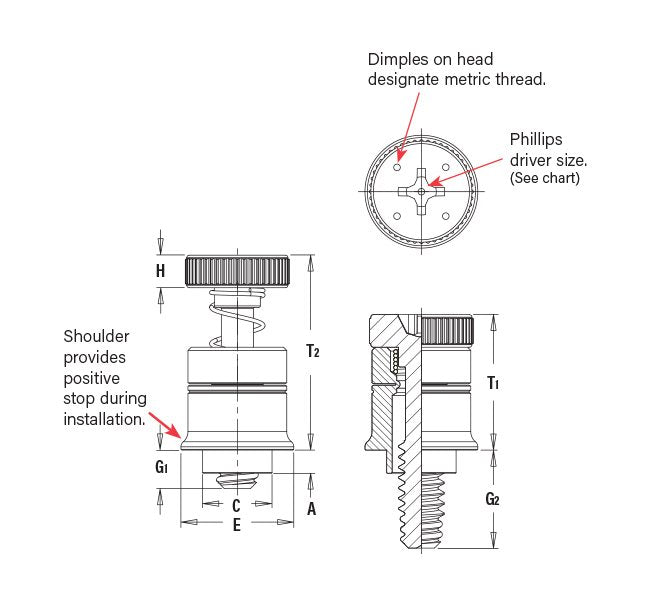

Specifications A Shank Max
.041 in
Specifications Cad Supplier
PennEngineering® (PEM®)
Specifications Cad View
Unfastened
Specifications C Max
.186 in
Specifications E 010
.310 in
Specifications Finish Retainer
Natural finish
Specifications Finish Screw
Bright nickel over copper flash
Specifications Finish Spring
Natural Finish
Specifications G1 025
.040 in
Specifications G2 025
.210 in
Specifications Hole Size In Sheet 0005 0000
.187 in
Specifications H 010
.100 in
Specifications Material Retainer
Aluminum
Specifications Material Screw
Heat-Treated Carbon Steel
Specifications Material Spring
300 Series Stainless Steel
Specifications Min Sheet Thickness
.031 in
Specifications Screw Length Code
0
Specifications T1 Nom
.38 in
Specifications T2 Nom
.55 in
Specifications Thread Code
440
Specifications Thread Size
.112-40 (#4;-40)
Specifications Thread Specification
ASME B1.1, 2A
Specifications Type
PF7MF
