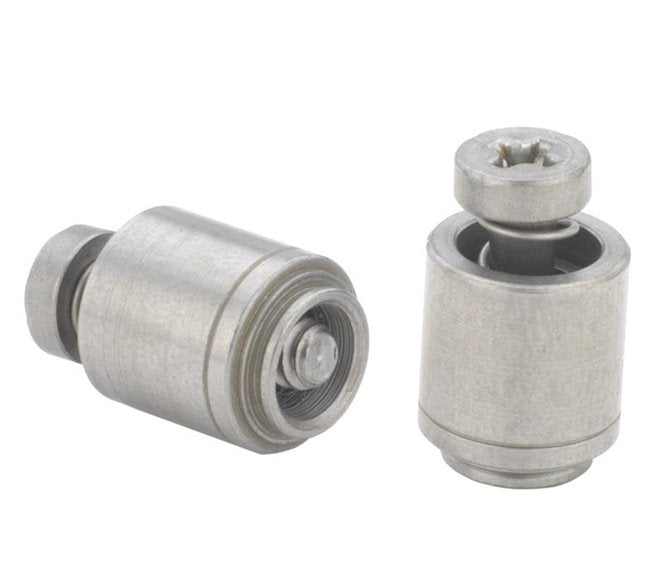

• PFC4 Captive Panel Screw Installation Tool - Image 1

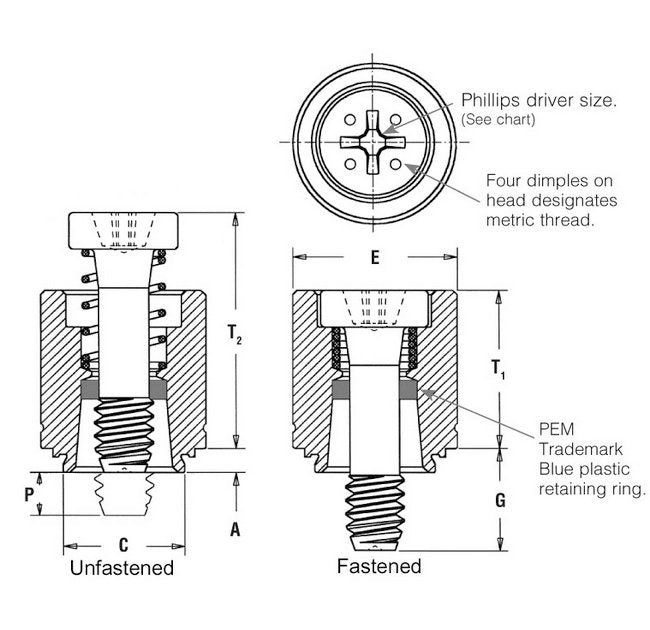

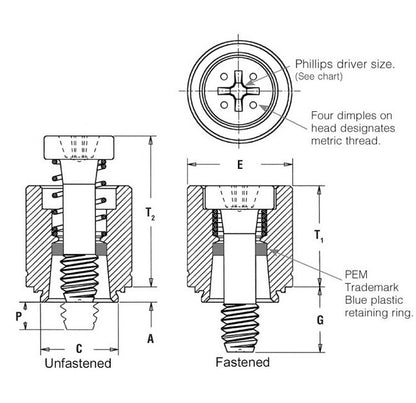

  • PFC4 Captive Panel Screw Installation Tool - Image 2
1 2
Hi-Tech Fasteners, Inc. →

PFC4 Captive Panel Screw Installation Tool

PFC4 Captive Panel Screw Installation Tool

PEM-6cda8c

Effortlessly install PFC4 captive panel screws with this sturdy tool. UL-approved, concealed-head, and versatile for different applications.

$29.99
$29.99
Sale

Initiate Order

PFC4 Captive Panel Screw Installation Tool

PFC4 Captive Panel Screw Installation Tool

$29.99

Quantity: 1

Claim Your Seller Account

PFC4 Captive Panel Screw Installation Tool

PFC4 Captive Panel Screw Installation Tool

$29.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
The PFC4 Captive Panel Screw Installation Tool is designed for effortless installation in stainless steel sheets with a hardness of HRB 88 or less. Featuring a fully concealed-head for secure tool-only access, this UL-approved tool ensures reliable performance. With assorted screw lengths available, it offers versatility for various applications. Crafted from high-quality stainless steel and spring-loaded for efficiency, this tool meets stringent industry standards for durability and precision.

Ready to Grow Without Cash Flow Constraints?

Get Net 30, 60, or 90 day terms at 0% interest on any purchase

Check Your Eligibility Now
Ready to Grow Without Cash Flow Constraints?

Product Specifications

Specifications A Shank Max
.060 in
Specifications Cad Supplier
PennEngineering® (PEM®)
Specifications Cad View
Unfastened
Specifications C Max
.264 in
Specifications Driver Size
#1 Phillips
Specifications E 010
.344 in
Specifications Finish Retainer
Passivated and/or tested per ASTM A380
Specifications Finish Screw
Passivated and/or tested per ASTM A380
Specifications Finish Spring
Natural Finish
Specifications For Use In Sheet Hardness
HRB 88 or Less (Hardness Rockwell “B” Scale) / HB 183 or Less (Hardness Brinell)
Specifications G 016
.375 in
Specifications Hole Size In Sheet 0003 0000
.265 in
Specifications Material Retainer
400 Series Stainless Steel
Specifications Material Screw
400 Series Stainless Steel
Specifications Material Spring
300 Series Stainless Steel
Specifications Min Dist Hole Cl To Edge
.250 in
Specifications Min Sheet Thickness
.060 in
Specifications P 025
.125 in
Specifications Screw Length Code
62
Specifications T1 Max
.370 in
Specifications T2 Nom
.540 in
Specifications Thread Code
440
Specifications Thread Size
.112-40 (#4;-40)
Specifications Thread Specification
ANSI B1.1, 2A
Specifications Type
PFC4
