PFHV Captive Panel Screw - Unified Thread

Name: PFHV Captive Panel Screw - Unified Thread
Brand: Hi-Tech Fasteners, Inc.
SKU: PEM-39d3a9
Price: 1.99 USD
Availability: OutOfStock

SKU:PEM-39d3a9

Compact PFHV Captive Panel Screw for metal sheets with ANSI B1.1, 2A thread specifications and ASTM B689 finishes.

$1.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The PFHV Captive Panel Screw is designed for metal sheets with a compact, low-profile design suitable for limited access areas. It features a shank size of .036 in, universal slot/Phillips recess standard, and is crafted from heat-treated carbon steel for durability. Compliant with ANSI B1.1, 2A thread specifications and finishes per ASTM B689 standards, this screw meets industry-specific certifications and is ideal for Federal/DoD procurement, GSA requirements, FAR compliance, and DLA standards.

Product Specifications

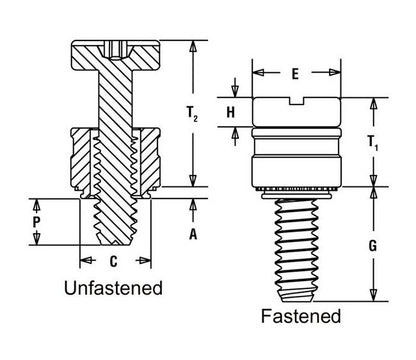

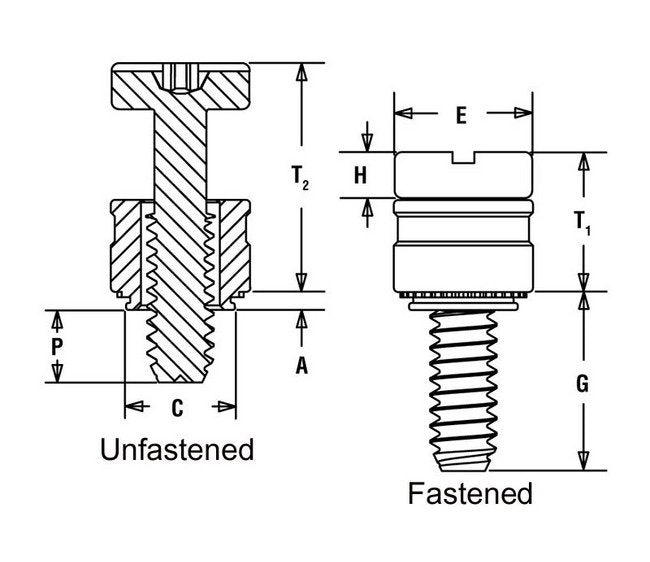

Specifications A Shank Max

.036 in

Specifications Cad Supplier

PennEngineeringÂ® (PEMÂ®)

Specifications Cad View

Unfastened

Specifications C Max

.202 in

Specifications Driver Size

Slotted/#1; Phillips

Specifications E 010

.260 in

Specifications Finish Retainer

Bright Nickel over Copper Flash per ASTM B689

Specifications Finish Screw

Bright nickel over copper flash per ASTM B689

Specifications For Use In Sheet Hardness

HRB 60 or Less (Hardness Rockwell âBâ Scale)HB 107 or Less (Hardness Brinell)

Specifications G 025

.216 in

Specifications Hole Size In Sheet 0003 0000

.203 in

Specifications H 005

.080 in

Specifications Material Retainer

Carbon Steel

Specifications Material Screw

Heat-Treated Carbon Steel

Specifications Min Dist Hole Cl To Edge

.210 in

Specifications Min Sheet Thickness

.036 in

Specifications P 025

.000 in

Specifications Screw Length Code

Specifications T1 Nom

.260 in

Specifications T2 Nom

.436 in

Specifications Thread Code

440

Specifications Thread Size

.112-40 (#4;-40)

Specifications Thread Specification

ANSI B1.1, 2A

Specifications Type

PFHV
