PFHV Metric Captive Panel Screw
PFHV Metric Captive Panel Screw
SKU:PEM-e45ba6
Get a durable and versatile PFHV Metric Captive Panel Screw for secure fastening on metal sheets. Easy installation in limited access areas.
Regular price
$9.99
Regular price
Sale price
$9.99
Unit price
per
Initiate Order
PFHV Metric Captive Panel Screw
$9.99
Quantity: 1
Claim Your Seller Account
PFHV Metric Captive Panel Screw
$9.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

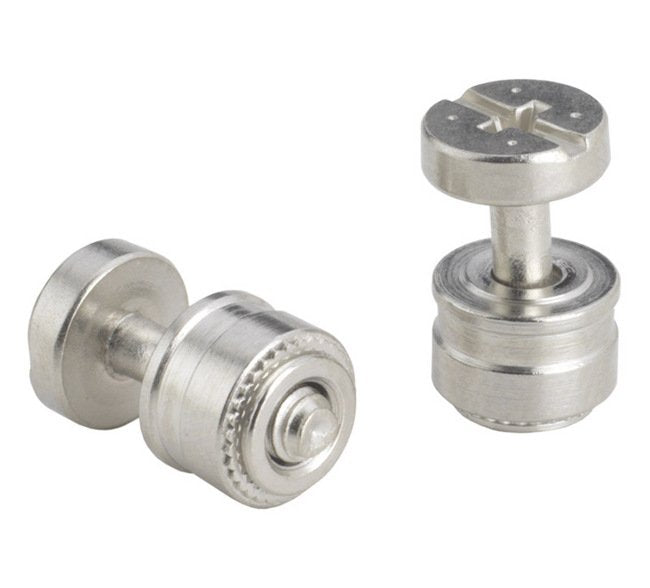

The PFHV Metric Captive Panel Screw is a reliable fastening solution designed for metal sheets and panels, offering a low-cost, compact, and versatile design. With universal slot/Phillips recess standard, this screw provides easy installation in limited access areas. Made of heat-treated carbon steel with a bright nickel finish, it ensures durability and corrosion resistance. Meeting ANSI/ASME B1.13M standards, this screw is suitable for sheet hardness up to HRB 60 or HB 107. Available in two screw lengths for flexibility in various applications.
Product Specifications

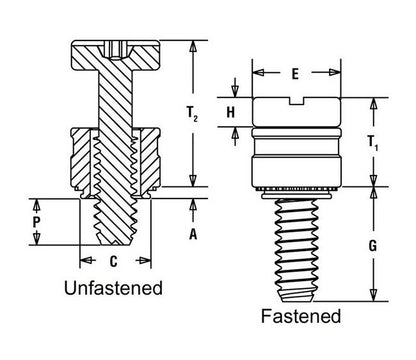

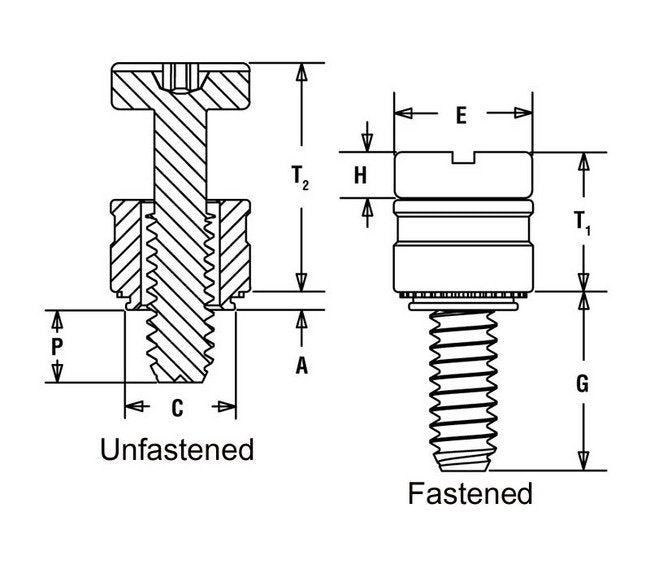

Specifications A Shank Max
0.92 mm
Specifications Cad Supplier
PennEngineering® (PEM®)
Specifications Cad View
Unfastened
Specifications C Max
6.38 mm
Specifications Driver Size
Slotted/#2; Phillips
Specifications E 025
7.85 mm
Specifications Finish Retainer
Bright Nickel over Copper Flash per ASTM B689
Specifications Finish Screw
Bright nickel over copper flash per ASTM B689
Specifications For Use In Sheet Hardness
HRB 60 or Less (Hardness Rockwell âBâ Scale)HB 107 or Less (Hardness Brinell)
Specifications G 064
9.39 mm
Specifications Hole Size In Sheet 008
6.4 mm
Specifications H 013
2.79 mm
Specifications Material Retainer
Carbon Steel
Specifications Material Screw
Heat-Treated Carbon Steel
Specifications Min Dist Hole Cl To Edge
6.70 mm
Specifications Min Sheet Thickness
0.92 mm
Specifications P 064
2.70 mm
Specifications Screw Length Code
1
Specifications T1 Nom
8.50 mm
Specifications T2 Nom
14.10 mm
Specifications Thread Code
M4
Specifications Thread Size X Pitch
M4 x 0.7
Specifications Thread Specification
ANSI/ASME B1.13M, 6g
Specifications Type
PFHV
