PFHV Metric Captive Panel Screw
PFHV Metric Captive Panel Screw
SKU:PEM-572585
High-quality PFHV Metric Captive Panel Screw for efficient and versatile fastening in limited access areas. ANSI/ASME B1.13M compliant.
Regular price
$1.99
Regular price
Sale price
$1.99
Unit price
per
Initiate Order
PFHV Metric Captive Panel Screw
$1.99
Quantity: 1
Claim Your Seller Account
PFHV Metric Captive Panel Screw
$1.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

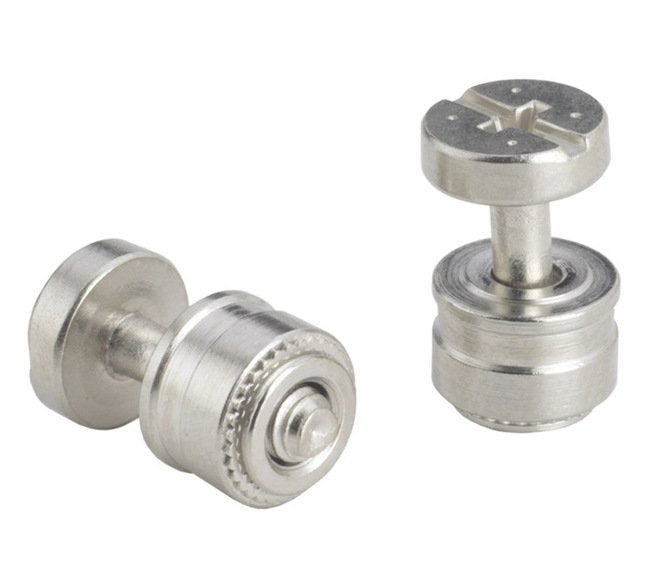

The PFHV Metric Captive Panel Screw-Screw Head is engineered for efficient fastening in limited access areas. With M3.5 x 0.6 thread size, it boasts a low profile design suitable for thin metal sheets. Made from heat-treated carbon steel with a bright nickel finish, it ensures durability and corrosion resistance. This PEM® screw meets ANSI/ASME B1.13M thread specifications and is designed for sheets with a hardness of HRB 60 or less. The universal slot/Phillips recess adds versatility to its functionality, making it a reliable choice for various applications.
Product Specifications

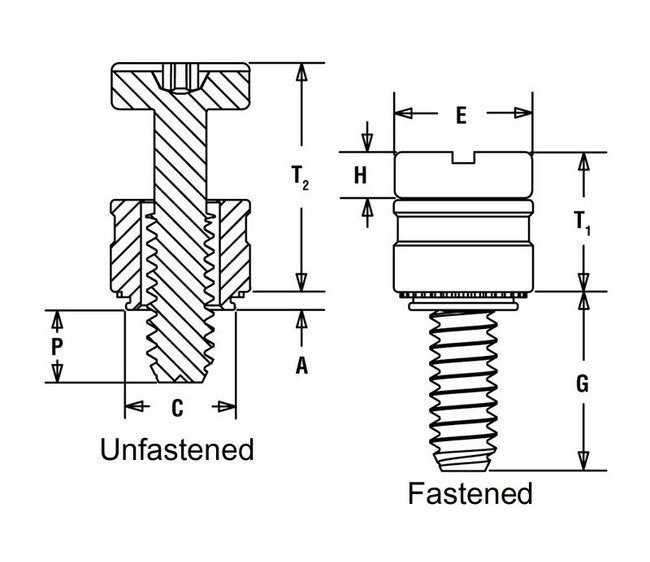

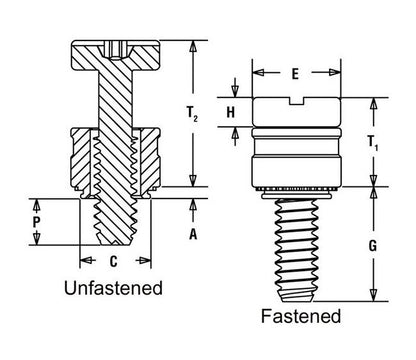

Specifications A Shank Max
0.92 mm
Specifications Cad Supplier
PennEngineering® (PEM®)
Specifications Cad View
Unfastened
Specifications C Max
5.98 mm
Specifications Driver Size
Slotted/#2; Phillips
Specifications E 025
7.45 mm
Specifications Finish Retainer
Bright Nickel over Copper Flash per ASTM B689
Specifications Finish Screw
Bright nickel over copper flash per ASTM B689
Specifications For Use In Sheet Hardness
HRB 60 or Less (Hardness Rockwell âBâ Scale)HB 107 or Less (Hardness Brinell)
Specifications G 064
6.01 mm
Specifications Hole Size In Sheet 008
6 mm
Specifications H 013
2.34 mm
Specifications Material Retainer
Carbon Steel
Specifications Material Screw
Heat-Treated Carbon Steel
Specifications Min Dist Hole Cl To Edge
6.30 mm
Specifications Min Sheet Thickness
0.92 mm
Specifications P 064
0 mm
Specifications Screw Length Code
0
Specifications T1 Nom
7.45 mm
Specifications T2 Nom
12.47 mm
Specifications Thread Code
M3.5
Specifications Thread Size X Pitch
M3.5 x 0.6
Specifications Thread Specification
ANSI/ASME B1.13M, 6g
Specifications Type
PFHV
