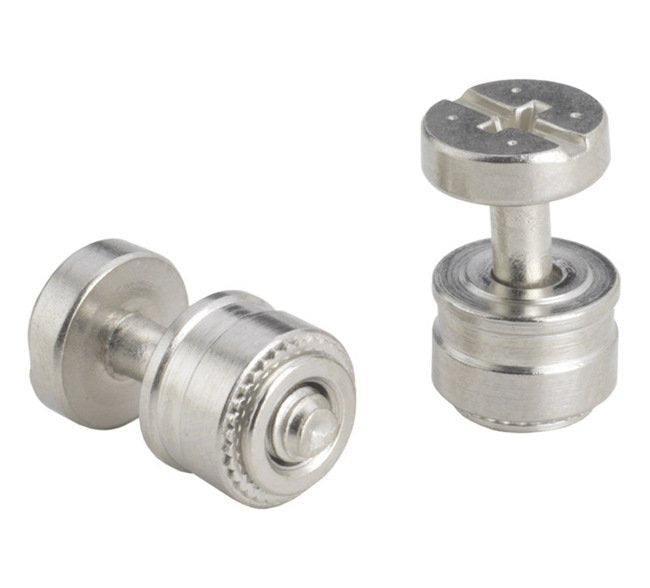

• PFHV Metric Captive Panel Screw-Screw Head - Image 1
  • PFHV Metric Captive Panel Screw-Screw Head - Image 2
1 2
Hi-Tech Fasteners, Inc. →

PFHV Metric Captive Panel Screw-Screw Head

PFHV Metric Captive Panel Screw-Screw Head

PEM-d1bf4a

Cost-effective PFHV Metric Captive Panel Screw-Screw Head for secure fastening in limited access areas, compliant with ANSI/ASME B1.13M thread standards.

$12.99
$12.99
Sale

Initiate Order

PFHV Metric Captive Panel Screw-Screw Head

PFHV Metric Captive Panel Screw-Screw Head

$12.99

Quantity: 1

Claim Your Seller Account

PFHV Metric Captive Panel Screw-Screw Head

PFHV Metric Captive Panel Screw-Screw Head

$12.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
The PFHV Metric Captive Panel Screw-Screw Head offers a cost-effective, compact design suitable for limited access areas. With universal slot/Phillips recess standard, this fastener comes in two screw lengths, meeting ANSI/ASME B1.13M thread specifications. Crafted from heat-treated carbon steel with a bright nickel finish, it's ideal for metal sheets ≤ 0.92mm thickness. Compliant with HRB 60 or less hardness standards, this PEM® Brand fastener ensures secure fastening in diverse applications.

Ready to Grow Without Cash Flow Constraints?

Get Net 30, 60, or 90 day terms at 0% interest on any purchase

Check Your Eligibility Now
Ready to Grow Without Cash Flow Constraints?

Product Specifications

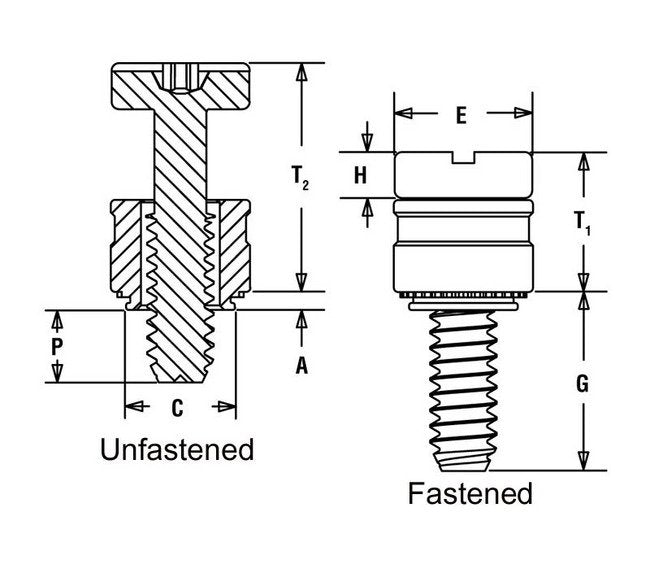

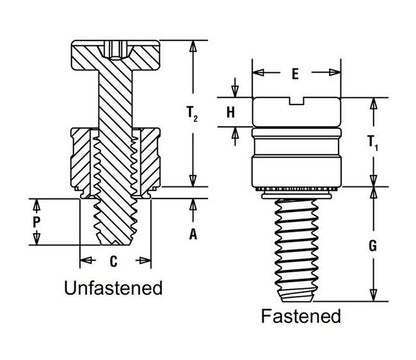

Specifications A Shank Max
0.92 mm
Specifications Cad Supplier
PennEngineering® (PEM®)
Specifications Cad View
Unfastened
Specifications C Max
5.49 mm
Specifications Driver Size
Slotted/#1; Phillips
Specifications E 025
6.95 mm
Specifications Finish Retainer
Bright Nickel over Copper Flash per ASTM B689
Specifications Finish Screw
Bright nickel over copper flash per ASTM B689
Specifications For Use In Sheet Hardness
HRB 60 or Less (Hardness Rockwell “B” Scale)HB 107 or Less (Hardness Brinell)
Specifications G 064
5.55 mm
Specifications Hole Size In Sheet 008
5.5 mm
Specifications H 013
2.03 mm
Specifications Material Retainer
Carbon Steel
Specifications Material Screw
Heat-Treated Carbon Steel
Specifications Min Dist Hole Cl To Edge
5.8 mm
Specifications Min Sheet Thickness
0.92 mm
Specifications P 064
0 mm
Specifications Screw Length Code
0
Specifications T1 Nom
6.69 mm
Specifications T2 Nom
11.25 mm
Specifications Thread Code
M3
Specifications Thread Size X Pitch
M3 x 0.5
Specifications Thread Specification
ANSI/ASME B1.13M, 6g
Specifications Type
PFHV
