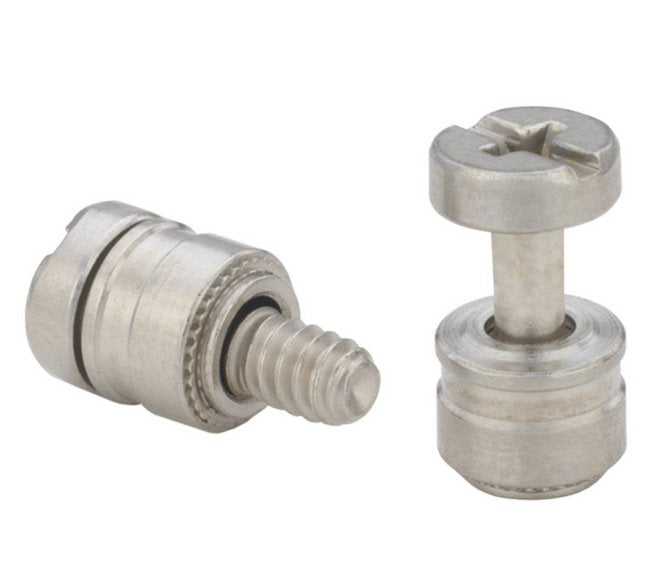

• PFHV Unified Captive Panel Screw Head - No Spring - Image 1
  • PFHV Unified Captive Panel Screw Head - No Spring - Image 2
1 2
Hi-Tech Fasteners, Inc. →

PFHV Unified Captive Panel Screw Head - No Spring

PFHV Unified Captive Panel Screw Head - No Spring

PEM-3bdfb9

Cost-effective PFHV Unified Captive Panel Screw Head with No Spring for limited-access areas. ANSI B1.1 compliant, heat-treated carbon steel, bright nickel finish.

$14.99
$14.99
Sale

Initiate Order

PFHV Unified Captive Panel Screw Head - No Spring

PFHV Unified Captive Panel Screw Head - No Spring

$14.99

Quantity: 1

Claim Your Seller Account

PFHV Unified Captive Panel Screw Head - No Spring

PFHV Unified Captive Panel Screw Head - No Spring

$14.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
The PFHV Unified Captive Panel Screw Head with No Spring is designed for cost-efficient solutions in limited-access areas. Featuring a small, compact, and low-profile design, this screw comes in two lengths and offers a universal slot/Phillips recess standard. With specifications meeting ANSI B1.1 standards, this screw is crafted from heat-treated carbon steel, ensuring durability and reliability. The bright nickel finish over copper flash provides corrosion resistance, making it ideal for metal sheets with a thickness of .036 inches. Trust PennEngineering® (PEM®) for quality fasteners compliant with industry standards.

Ready to Grow Without Cash Flow Constraints?

Get Net 30, 60, or 90 day terms at 0% interest on any purchase

Check Your Eligibility Now
Ready to Grow Without Cash Flow Constraints?

Product Specifications

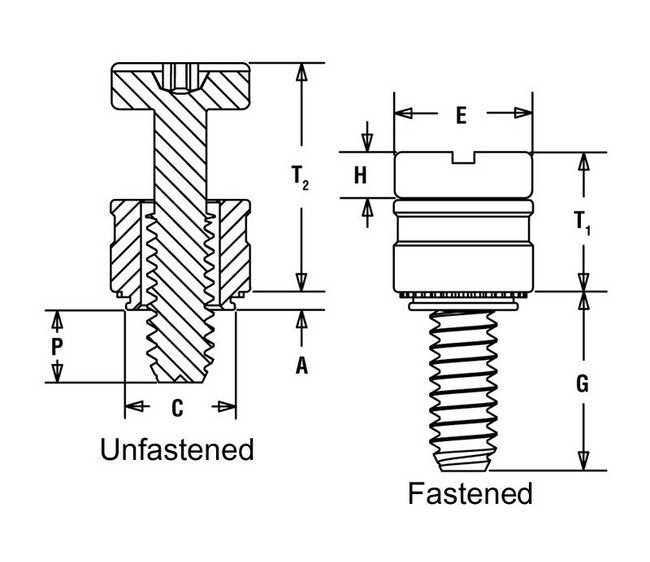

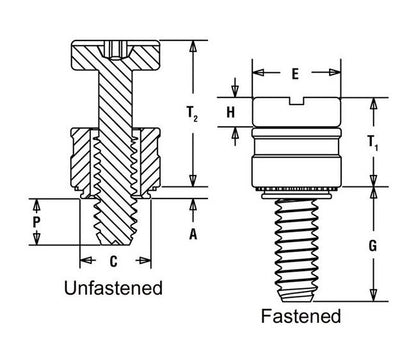

Specifications A Shank Max
.036 in
Specifications Cad Supplier
PennEngineering® (PEM®)
Specifications Cad View
Unfastened
Specifications C Max
.218 in
Specifications Driver Size
Slotted/#2; Phillips
Specifications E 010
.276 in
Specifications Finish Retainer
Bright Nickel over Copper Flash per ASTM B689
Specifications Finish Screw
Bright nickel over copper flash per ASTM B689
Specifications For Use In Sheet Hardness
HRB 60 or Less (Hardness Rockwell “B” Scale)HB 107 or Less (Hardness Brinell)
Specifications G 025
.359 in
Specifications Hole Size In Sheet 0003 0000
.219 in
Specifications H 005
.092 in
Specifications Material Retainer
Carbon Steel
Specifications Material Screw
Heat-Treated Carbon Steel
Specifications Min Dist Hole Cl To Edge
.23 in
Specifications Min Sheet Thickness
.036 in
Specifications P 025
.120 in
Specifications Screw Length Code
1
Specifications T1 Nom
.290 in
Specifications T2 Nom
.484 in
Specifications Thread Code
632
Specifications Thread Size
.138-32 (#6;-32)
Specifications Thread Specification
ANSI B1.1, 2A
Specifications Type
PFHV
