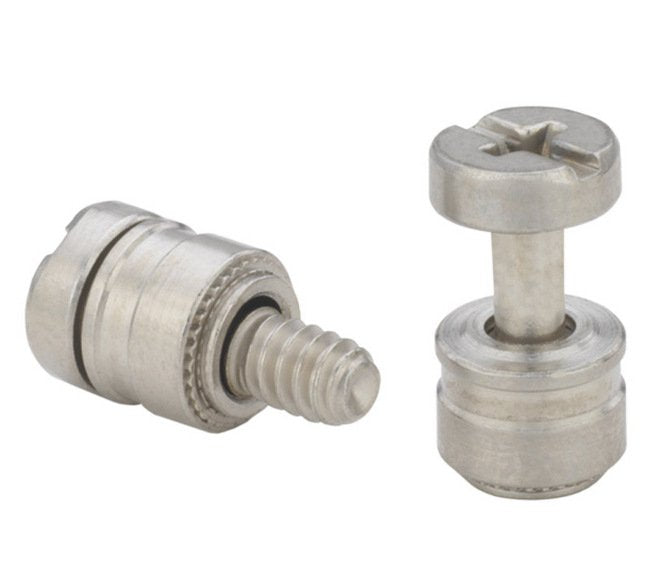

• PFHV Unified Captive Panel Screw Head (No Spring) - Image 1
  • PFHV Unified Captive Panel Screw Head (No Spring) - Image 2
1 2
Hi-Tech Fasteners, Inc. →

PFHV Unified Captive Panel Screw Head (No Spring)

PFHV Unified Captive Panel Screw Head (No Spring)

PEM-af9209

Versatile PFHV Unified Captive Panel Screw for limited access areas, featuring two screw lengths and universal slot/Phillips recess for convenience and durability.

$12.99
$12.99
Sale

Initiate Order

PFHV Unified Captive Panel Screw Head (No Spring)

PFHV Unified Captive Panel Screw Head (No Spring)

$12.99

Quantity: 1

Claim Your Seller Account

PFHV Unified Captive Panel Screw Head (No Spring)

PFHV Unified Captive Panel Screw Head (No Spring)

$12.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
The PFHV Unified Captive Panel Screw features a low-cost, compact design ideal for limited access areas. With two screw lengths and a universal slot/Phillips recess standard, this screw offers versatility and convenience. Constructed with heat-treated carbon steel and finished with bright nickel over copper flash per ASTM B689, it ensures durability and reliability in various applications. Designed for sheet hardness up to HRB 60 or HB 107, this screw meets stringent industry standards, making it a reliable choice for metal sheets and panels.

Product Specifications

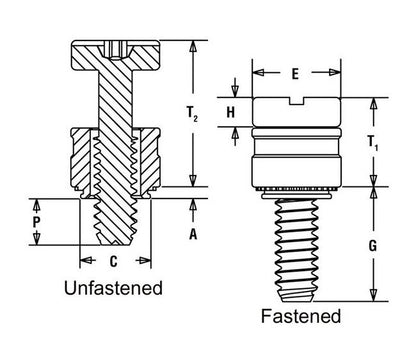

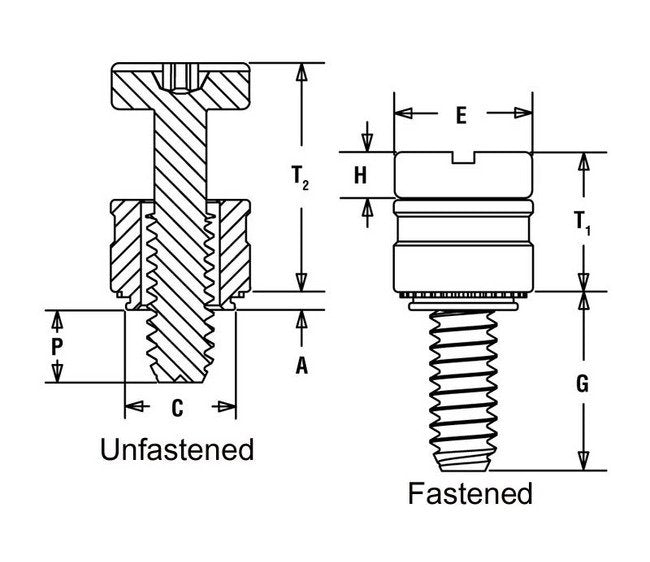

Specifications A Shank Max
.036 in
Specifications Cad Supplier
PennEngineering® (PEM®)
Specifications Cad View
Unfastened
Specifications C Max
.218 in
Specifications Driver Size
Slotted/#2; Phillips
Specifications E 010
.276 in
Specifications Finish Retainer
Bright Nickel over Copper Flash per ASTM B689
Specifications Finish Screw
Bright nickel over copper flash per ASTM B689
Specifications For Use In Sheet Hardness
HRB 60 or Less (Hardness Rockwell “B” Scale)HB 107 or Less (Hardness Brinell)
Specifications G 025
.234 in
Specifications Hole Size In Sheet 0003 0000
.219 in
Specifications H 005
.092 in
Specifications Material Retainer
Carbon Steel
Specifications Material Screw
Heat-Treated Carbon Steel
Specifications Min Dist Hole Cl To Edge
.23 in
Specifications Min Sheet Thickness
.036 in
Specifications P 025
.000 in
Specifications Screw Length Code
0
Specifications T1 Nom
.290 in
Specifications T2 Nom
.484 in
Specifications Thread Code
632
Specifications Thread Size
.138-32 (#6;-32)
Specifications Thread Specification
ANSI B1.1, 2A
Specifications Type
PFHV
