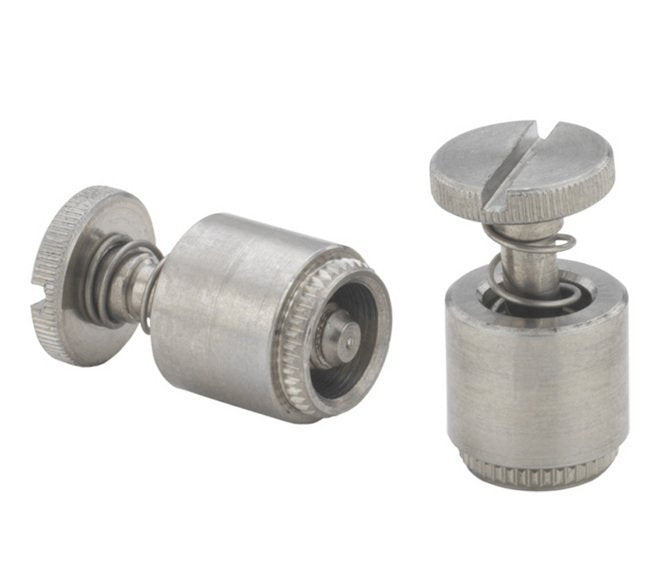

• PFK Unified Captive Screws for PC Boards - Image 1
  • PFK Unified Captive Screws for PC Boards - Image 2

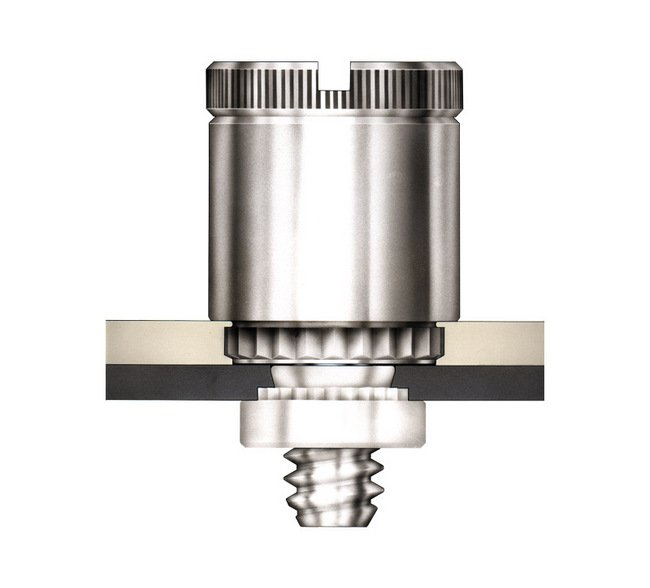

  • PFK Unified Captive Screws for PC Boards - Image 3
1 3
Hi-Tech Fasteners, Inc. →

PFK Unified Captive Screws for PC Boards

PFK Unified Captive Screws for PC Boards

PEM-8ee809

High-quality PFK Unified Captive Screws for PC boards, featuring .138-32 (#6-32) thread size and 300 Series Stainless Steel construction. Compliant with ANSI B1.1, 2A thread specification and passivated finish standards.

$24.99
$24.99
Sale

Initiate Order

PFK Unified Captive Screws for PC Boards

PFK Unified Captive Screws for PC Boards

$24.99

Quantity: 1

Claim Your Seller Account

PFK Unified Captive Screws for PC Boards

PFK Unified Captive Screws for PC Boards

$24.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
The PFK Unified Captive Screws are meticulously engineered for secure fastening in PC boards. Featuring a thread size of .138-32 (#6-32) and constructed from high-quality 300 Series Stainless Steel, these screws ensure durability and reliability. With ANSI B1.1, 2A thread specification and passivated finish per ASTM A380, they meet stringent industry standards for exceptional performance. Ideal for sheet thicknesses of 0.060 inches and applications requiring HRB 70 or less hardness.

Ready to Grow Without Cash Flow Constraints?

Get Net 30, 60, or 90 day terms at 0% interest on any purchase

Check Your Eligibility Now
Ready to Grow Without Cash Flow Constraints?

Product Specifications

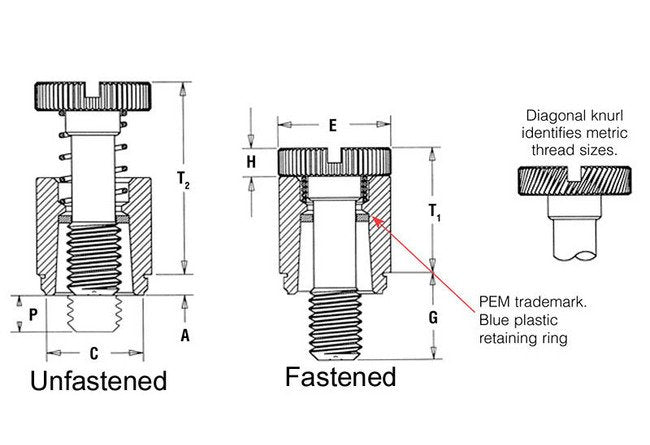

Specifications A Shank Max
.060 in
Specifications Cad Supplier
PennEngineering® (PEM®)
Specifications Cad View
Unfastened
Specifications C 003
.299 in
Specifications E 010
.344 in
Specifications Finish Retainer
Passivated and/or tested per ASTM A380
Specifications Finish Screw
Passivated and/or tested per ASTM A380
Specifications Finish Spring
Natural Finish
Specifications For Use In Sheet Hardness
HRB 70 or Less (Hardness Rockwell “B” Scale) / HB 125 or Less (Hardness Brinell)
Specifications G 016
.500 in
Specifications Hole Size In Sheet 0003 0000
.281 in
Specifications H 005
.072 in
Specifications Material Retainer
300 Series Stainless Steel
Specifications Material Screw
300 Series Stainless Steel
Specifications Material Spring
300 Series Stainless Steel
Specifications Min Dist Hole Cl To Edge
.260 in
Specifications Min Sheet Thickness
.060 in
Specifications P 025
.250 in
Specifications Screw Length Code
84
Specifications T1 Max
.360 in
Specifications T2 Nom
.540 in
Specifications Thread Code
632
Specifications Thread Size
.138-32 (#6;-32)
Specifications Thread Specification
ANSI B1.1, 2A
Specifications Type
PFK
