PH Hex Head Plug for Fractional Tube
PH Hex Head Plug for Fractional Tube
SKU:FIT-fbe84e
Precision-made PH Hex Head Plug for leak-free connections in various applications. ANSI standard working pressures & high-quality materials.
Regular price
$12.99
Regular price
Sale price
$12.99
Unit price
per
Initiate Order
PH Hex Head Plug for Fractional Tube
$12.99
Quantity: 1
Claim Your Seller Account
PH Hex Head Plug for Fractional Tube
$12.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

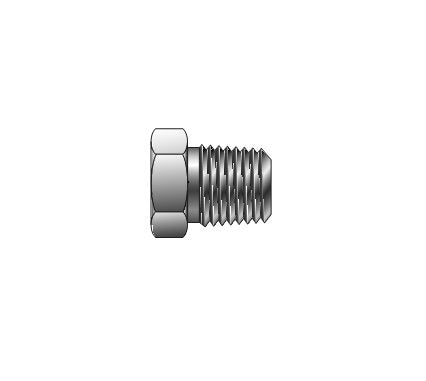

The PH Hex Head Plug is a precision-engineered instrumentation pipe fitting designed for leak-free connections in process, power, and industrial applications. Manufactured to the highest quality standards in Huntsville, Alabama, it offers a wide range of sizes, materials, and configurations. With working pressures meeting ANSI standards, this fitting is ideal for instrumentation applications requiring durability and reliability.
Product Specifications

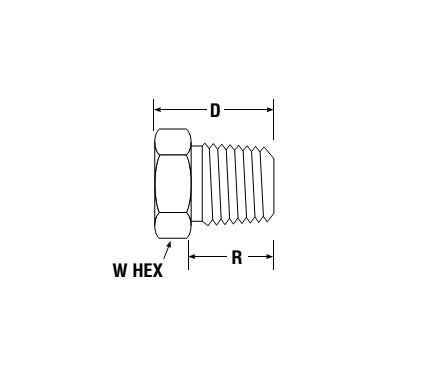

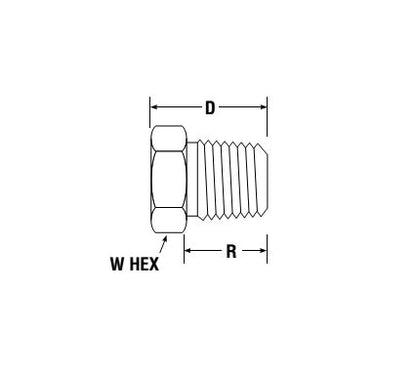

Dimensions Connection Type
NPT
Dimensions D
.56 in
Dimensions Npt Thread Male
1/8
Dimensions R
.38 in
Dimensions Working Pressure Brass
5600 psig
Dimensions Working Pressure Stainless Steel
9100 psig
Dimensions Working Pressure Steel
9700 psig
Dimensions W Hex
7/16 in
Specifications Features
Quality engineered for instrumentation applicationsPackaged in sealed, clear plastic shrink wrapped boxes for cleanlinessWorking pressures calculated in accordance with Power Piping Code ANSI B31.1 and Refiner Piping Code ANSI B31.3.All pipe threads are National Pipe Taper (NPT) and exceed the requirements of ANSI B1.20.1.Rolled male threads for extra strengthStraight bodies machined from applicable ASTM bar stock specificationsShapes machined from close grain forgingsSize ranges from 1/16" through 2" NPTMaterials - 316 Stainless Steel, Brass and Steel. (Other materials by special order)All exposed threads protected to prevent damage
Specifications Features And Technical Data
Parker Instrument Pipe Fittings are precision machined from forgings for elbows, tees and crosses and from bar stock for straight connectors. They are designed to be used for process control and instrumentation connections between pipe sizes and tube sizes.
Specifications Material
Parker Pipe Fittings are standard in steel and brass. Other materials may be special ordered within the Parker Quick Response Department. Straight fittings are manufactured from applicable ASTM bar stock specifications shaped fittings are manufactured from close grain forgings.
