PH Series Hand Operated Hydraulic Pump
PH Series Hand Operated Hydraulic Pump
SKU:HYD-65b7c6
Versatile PH Series Hydraulic Pump with 5000 PSI max pressure, 70 cubic inch reservoir, and durable steel construction. Lightweight and easy to operate in any position.
Regular price
$691.00
Regular price
Sale price
$691.00
Unit price
per
Initiate Order
PH Series Hand Operated Hydraulic Pump
$691.00
Quantity: 1
Claim Your Seller Account
PH Series Hand Operated Hydraulic Pump
$691.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

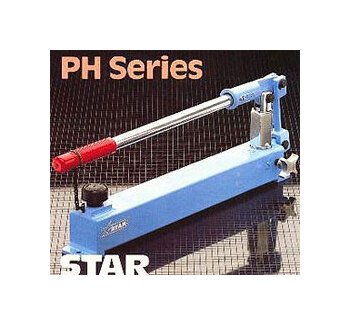

The PH Series Hand Operated Hydraulic Pump is a versatile and reliable solution for hydraulic applications. Designed with a steel body and hard chrome plated pistons, this pump offers a maximum pressure of 5000 PSI and a reservoir capacity of 70 cubic inches. The adjustable overload relief valve and manual pressure release valve ensure safe operation. With a lightweight design of only 17 lbs, this pump can be used in horizontal or vertical positions with ease. The included operating lever adds convenience to its functionality, making it a practical choice for various hydraulic systems.
Product Specifications
Specifications Adjustable Overload Relief Valve
Yes
Specifications Body Material
Steel
Specifications Inlet Port Size Nptf
3/8
Specifications Lever Load Per 1000 Psi
30.0 lb
Specifications List Price
691 USD
Specifications Manual Pressure Release Valve
Yes
Specifications Maximum Pressure Rating
5000 psi
Specifications Net Weight
17 lb
Specifications Oil Reservoir
true
Specifications Outlet Port Size Nptf
3/8
Specifications Piston
Hard Chrome Plated
Specifications Piston Diameter
3/4 in
Specifications Series
PH
Specifications Standard Reservoir Capacity
70 in³
Specifications Volume Per Stroke
0.66 in³
Technical Information 0
Limited WarrantyAll Star pumps are covered by a limited warranty on materials and workmanship for one year from the date of manufacture. Star will repair or replace at its option any pump in which Star finds manufacturing defects. In order to get warranty service a pump must be returned to the Star plant freight prepaid with a written explanation of the problem.Technical DataLight hydraulic oil is recommended for use with Star pumps. Oils with SUS viscosity of 75 to 150 at 100 degrees Fahrenheit will give satisfactory performance (ISO grade 15, 22, or 32). In an emergency situation when the above oils are not available, use 5 W or 10 W motor oil or automatic transmission fluid.All exposed surfaces of standard Star pumps are painted with one coat of industrial quality paint. Pumps painted with special colors with two coat finishes, or with prime coat only, and pumps with special plated or polished parts, are also available.
