PH Series Hand Operated Hydraulic Pumps
PH Series Hand Operated Hydraulic Pumps
SKU:HYD-1c9b3b
Powerful and versatile hand-operated hydraulic pumps with steel body, chrome plated pistons, and 2500 PSI max pressure. Ideal for various applications.
Regular price
$647.00
Regular price
Sale price
$647.00
Unit price
per
Initiate Order
PH Series Hand Operated Hydraulic Pumps
$647.00
Quantity: 1
Claim Your Seller Account
PH Series Hand Operated Hydraulic Pumps
$647.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

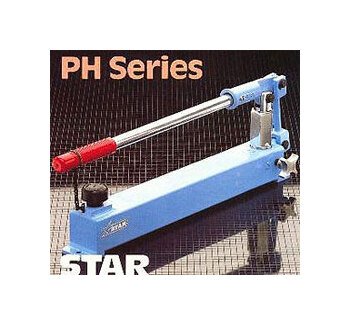

The PH Series Hand Operated Hydraulic Pumps are powerful yet versatile pumps that boast a durable steel pump body and hard chrome plated pistons. With a maximum pressure rating of 2500 PSI, these pumps feature an adjustable overload relief valve and manual pressure release valve for added safety and control. The compact design allows for horizontal or vertical operation, while the 70 cubic inch reservoir (larger options available) ensures efficient oil capacity. Whether for consumer or institutional use, these pumps provide reliability and ease of operation.
Product Specifications
Specifications Adjustable Overload Relief Valve
Yes
Specifications Body Material
Steel
Specifications Inlet Port Size Nptf
3/8
Specifications Lever Load Per 1000 Psi
54.0 lb
Specifications List Price
647 USD
Specifications Manual Pressure Release Valve
Yes
Specifications Maximum Pressure Rating
2500 psi
Specifications Net Weight
17 lb
Specifications Oil Reservoir
true
Specifications Outlet Port Size Nptf
3/8
Specifications Piston
Hard Chrome Plated
Specifications Piston Diameter
1 in
Specifications Series
PH
Specifications Standard Reservoir Capacity
70 in³
Specifications Volume Per Stroke
1.18 in³
Technical Information 0
Limited WarrantyAll Star pumps are covered by a limited warranty on materials and workmanship for one year from the date of manufacture. Star will repair or replace at its option any pump in which Star finds manufacturing defects. In order to get warranty service a pump must be returned to the Star plant freight prepaid with a written explanation of the problem.Technical DataLight hydraulic oil is recommended for use with Star pumps. Oils with SUS viscosity of 75 to 150 at 100 degrees Fahrenheit will give satisfactory performance (ISO grade 15, 22, or 32). In an emergency situation when the above oils are not available, use 5 W or 10 W motor oil or automatic transmission fluid.All exposed surfaces of standard Star pumps are painted with one coat of industrial quality paint. Pumps painted with special colors with two coat finishes, or with prime coat only, and pumps with special plated or polished parts, are also available.
