Phase Closed Loop FWD Series Stepping Motor - 314 mN·m Static Torque
Phase Closed Loop FWD Series Stepping Motor - 314 mN·m Static Torque
SKU:STE-939e55
Enhance your industrial processes with the high-speed 2 Phase Closed Loop FWD Series Stepping Motor featuring unique out-of-step position detection.
Regular price
$129.99
Regular price
Sale price
$129.99
Unit price
per
Initiate Order
Phase Closed Loop FWD Series Stepping Motor - 314 mN·m Static Torque
$129.99
Quantity: 1
Claim Your Seller Account
Phase Closed Loop FWD Series Stepping Motor - 314 mN·m Static Torque
$129.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Upgrade your industrial applications with precision and speed using the 2 Phase Closed Loop FWD Series Stepping Motor. This motor features a unique 2 phase Control System that enables high speeds up to 0.72, equivalent to 5 phase motors. Detect out of step positions and operate smoothly with the KH Series hybrid square motor. With advanced specifications like a Max. Static Torque of 314 mN·m and working ambient temperatures ranging from -10~+50 °C, this motor is built for reliability and performance.
Product Specifications
Additional Information 0

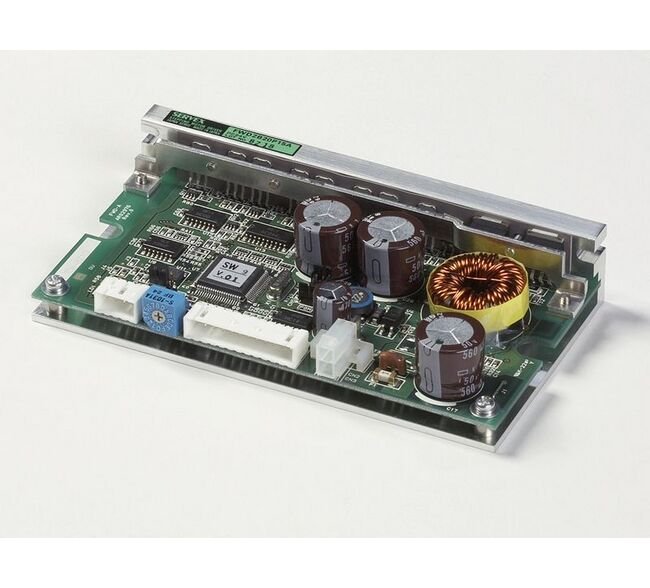

Allowable Radial Load and Allowable Thrust Load | Driver and Motor Selection Guide | Driver Picture | Explanation of Dynamic Torque Curves | Installation Location | KH42 B900 Series 42mm, 2-Phase Stepping Motors (1.8 Degree/Step) - Nema 17 (KH4238-B95101) | Stepping Servos FWD Series | System Configuration | Torque Stepping Drawing
Customize 0
Custom Designs
Dimensions 0
Connection Diagrams | External Drawing of the Driver | Wiring Diagram
Specifications Applicable Motor
KH42JM2-951
Specifications Basic Resolution
0.72 in
Specifications Current
0.8 A
Specifications Dielectric Strength Motor Section
500VAC 50Hz 1min
Specifications Driver Mass
0.51 lb
Specifications Excitation System
Basic Resolution (Step) | Micro Step (n=1, 2, 4, 8, 10, 20, 40, 80)
Specifications Insulation Class Motor Section
Equivalent to class
Specifications Insulation Resistance Motor Section
500VDC 100 MO min
Specifications Max Static Torque
314 mN·m | 44.5 oz.in
Specifications Motor Frame Size
42 x 42 mm | 1.564 x 1.564 in
Specifications Motor Mass
0.57 lb
Specifications No Of Phases
2
Specifications Power Specifications
24VDC, 2.0A
Specifications Rotor Inertia
0.79 x 103 oz·in²
Specifications Storage Ambient Humidity Driver Section
35~85 %
Specifications Storage Ambient Humidity Motor Section
10~85 %
Specifications Storage Ambient Temperature Driver Section
0~+50 ºC
Specifications Storage Ambient Temperature Motor Section
-20~+70 ºC
Specifications Type
2 Phase Hybrid Square KH Series
Specifications Working Ambient Humidity Driver Section
0~+50 ºC
Specifications Working Ambient Humidity Motor Section
15~85 %
Specifications Working Ambient Temperature Driver Section
0~+50 ºC
Specifications Working Ambient Temperature Motor Section
-10~+50 ºC
Torque Curve 0
