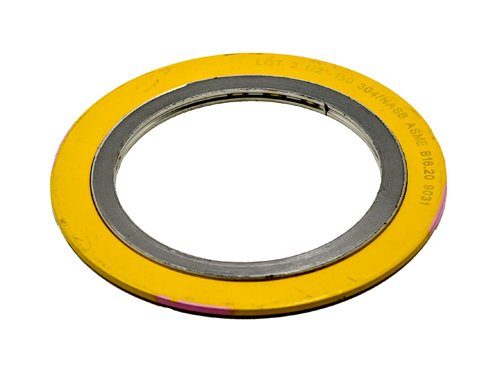

Phelps® 9000 Spiral Wound Metal Gaskets with Compression Ring
Phelps® 9000 Spiral Wound Metal Gaskets with Compression Ring
SKU:PHE-7c9d0b
Precision-engineered Phelps® 9000 Metal Gaskets for high-pressure applications. Compliant with API 601 standards.
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
Phelps® 9000 Spiral Wound Metal Gaskets with Compression Ring
$39.99
Quantity: 1
Claim Your Seller Account
Phelps® 9000 Spiral Wound Metal Gaskets with Compression Ring
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Phelps® Style 9000 Spiral Wound Metal Gaskets with Compression Ring feature a carbon steel compression ring for accurate centering, quick installation, and radial pressure retention. Compliant with American Petroleum Institute (API) 601 standards, available in various materials including 316L Stainless Steel, Hastelloy®, and more. Ideal for applications requiring reliability, durability, and precise sealing under high pressure and temperature conditions.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Specifications Available Material
316L Stainless Steel (SS) | 321 Stainless Steel (SS) | 347 Stainless Steel (SS) | Ceramic | Graphite | Hastelloy® | Inconel® | Monel® | Nickel | Polytetrafluoroethylene (PTFE) | Titanium
Specifications Gasket Type
Spiral Wound
Specifications Guide Ring Thickness
1/8 in
Specifications Industry Standard
American Petroleum Institute (API) 601
Specifications Inner Diameter Of Sealing Element For Class 1500
1-1/4 in
Specifications Inner Diameter Of Sealing Element For Class 2500
1-1/4 in
Specifications Inner Diameter Of Sealing Element For Class 900 L
1-1/4 in
Specifications Nominal Gasket Thickness
3/16 in
Specifications Outer Diameter Of Centering Ring For Class 1500 L
3-1/8 in
Specifications Outer Diameter Of Centering Ring For Class 2500 L
3-3/8 in
Specifications Outer Diameter Of Centering Ring For Class 900 Lb
3-1/8 in
Specifications Outside Diameter Of Sealing Element For Class 150
1-7/8 in
Specifications Outside Diameter Of Sealing Element For Class 250
1-7/8 in
Specifications Outside Diameter Of Sealing Element For Class 900
1-7/8 in
Specifications Pipe Size
1 in
Specifications Standard Material For Compression Ring
Carbon Steel
Specifications Standard Material For V Metal Spiral
304 Stainless Steel (SS) with Leaderfite Filler
