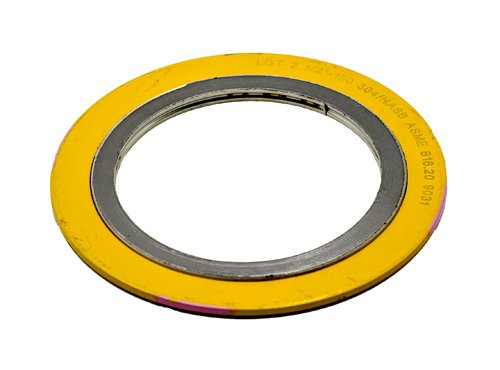

Phelps® Style 9000 Spiral Wound Metal Gaskets
Phelps® Style 9000 Spiral Wound Metal Gaskets
SKU:PHE-c221b7
Phelps® Style 9000 Spiral Wound Metal Gaskets with Carbon Steel compression ring. API 601 standards compliant, wide material options, and precise centering for industrial sealing needs.
Regular price
$55.99
Regular price
Sale price
$55.99
Unit price
per
Initiate Order
Phelps® Style 9000 Spiral Wound Metal Gaskets
$55.99
Quantity: 1
Claim Your Seller Account
Phelps® Style 9000 Spiral Wound Metal Gaskets
$55.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Enhance your industrial sealing solutions with Phelps® Style 9000 Spiral Wound Metal Gaskets featuring a Carbon Steel compression ring for precise centering, quick installation, and radial pressure retention. These gaskets, with 304 Stainless Steel V Metal Spiral and leaderfite filler, offer a wide material selection including 316L/321/347 SS, Ceramic, Hastelloy®, and more. Meeting American Petroleum Institute (API) 601 standards, these gaskets come in various sizes and pressure ratings, ensuring reliable performance in demanding applications.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Specifications Available Material
316L Stainless Steel (SS) | 321 Stainless Steel (SS) | 347 Stainless Steel (SS) | Ceramic | Graphite | Hastelloy® | Inconel® | Monel® | Nickel | Polytetrafluoroethylene (PTFE) | Titanium
Specifications Gasket Type
Spiral Wound
Specifications Guide Ring Thickness
1/8 in
Specifications Industry Standard
American Petroleum Institute (API) 601
Specifications Inner Diameter Of Sealing Element For Class 150 L
2-3/4 in
Specifications Inner Diameter Of Sealing Element For Class 300 L
2-3/4 in
Specifications Inner Diameter Of Sealing Element For Class 400 L
2-3/4 in
Specifications Inner Diameter Of Sealing Element For Class 600 L
2-3/4 in
Specifications Nominal Gasket Thickness
3/16 in
Specifications Outer Diameter Of Centering Ring For Class 150 Lb
4-1/8 in
Specifications Outer Diameter Of Centering Ring For Class 300 Lb
4-3/8 in
Specifications Outer Diameter Of Centering Ring For Class 400 Lb
4-3/8 in
Specifications Outer Diameter Of Centering Ring For Class 600 Lb
4-3/8 in
Specifications Outside Diameter Of Sealing Element For Class 150
3-3/8 in
Specifications Outside Diameter Of Sealing Element For Class 300
3-3/8 in
Specifications Outside Diameter Of Sealing Element For Class 400
3-3/8 in
Specifications Outside Diameter Of Sealing Element For Class 600
3-3/8 in
Specifications Pipe Size
2 in
Specifications Standard Material For Compression Ring
Carbon Steel
Specifications Standard Material For V Metal Spiral
304 Stainless Steel (SS) with Leaderfite Filler
