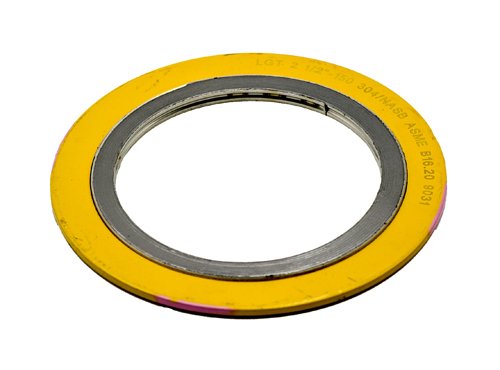

Phelps® Style 9000 Spiral Wound Metal Gaskets
Phelps® Style 9000 Spiral Wound Metal Gaskets
SKU:PHE-8ce679
Phelps® Style 9000 Spiral Wound Metal Gaskets - Precision engineering for reliable industrial sealing requirements.
Regular price
$45.99
Regular price
Sale price
$45.99
Unit price
per
Initiate Order
Phelps® Style 9000 Spiral Wound Metal Gaskets
$45.99
Quantity: 1
Claim Your Seller Account
Phelps® Style 9000 Spiral Wound Metal Gaskets
$45.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Phelps® Style 9000 Spiral Wound Metal Gaskets with Compression Ring are designed for precise centering, quick installation, and radial pressure retention. Compliant with American Petroleum Institute (API) 601 standards, they feature a Carbon Steel compression ring and 304 Stainless Steel V metal spiral with Leaderfite filler. Available in various materials including Inconel®, Monel®, and PTFE, these gaskets offer reliable sealing for pipe sizes up to 4-1/2 inches.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Specifications Available Material
316L Stainless Steel (SS) | 321 Stainless Steel (SS) | 347 Stainless Steel (SS) | Ceramic | Graphite | Hastelloy® | Inconel® | Monel® | Nickel | Polytetrafluoroethylene (PTFE) | Titanium
Specifications Gasket Type
Spiral Wound
Specifications Guide Ring Thickness
1/8 in
Specifications Industry Standard
American Petroleum Institute (API) 601
Specifications Inner Diameter Of Sealing Element For Class 1500
5-5/16 in
Specifications Inner Diameter Of Sealing Element For Class 900 L
5-5/16 in
Specifications Nominal Gasket Thickness
3/16 in
Specifications Outer Diameter Of Centering Ring For Class 1500 L
9-1/8 in
Specifications Outer Diameter Of Centering Ring For Class 900 Lb
9-3/8 in
Specifications Outside Diameter Of Sealing Element For Class 150
6-1/2 in
Specifications Outside Diameter Of Sealing Element For Class 250
6-1/2 in
Specifications Outside Diameter Of Sealing Element For Class 900
6-1/2 in
Specifications Pipe Size
4-1/2 in
Specifications Standard Material For Compression Ring
Carbon Steel
Specifications Standard Material For V Metal Spiral
304 Stainless Steel (SS) with Leaderfite Filler
