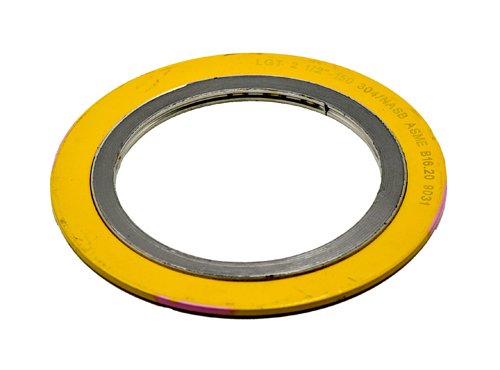

Phelps® Style 9000 Spiral Wound Metal Gaskets
Phelps® Style 9000 Spiral Wound Metal Gaskets
SKU:PHE-f7f580
High-performance Phelps® Style 9000 Spiral Wound Metal Gaskets for industrial sealing needs. Compliant with API standards.
Regular price
$69.99
Regular price
Sale price
$69.99
Unit price
per
Initiate Order
Phelps® Style 9000 Spiral Wound Metal Gaskets
$69.99
Quantity: 1
Claim Your Seller Account
Phelps® Style 9000 Spiral Wound Metal Gaskets
$69.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Phelps® Style 9000 Spiral Wound Metal Gaskets with Compression Ring are designed for precision sealing in industrial applications. Featuring a Carbon Steel compression ring, 304 Stainless Steel V metal spirals with Leaderfite Filler, and compatibility with various materials like Hastelloy®, Inconel®, and PTFE, these gaskets offer robust performance and durability. Compliant with American Petroleum Institute (API) 601 standards, these gaskets provide reliable sealing solutions for a range of pressure and temperature requirements.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Specifications Available Material
316L Stainless Steel (SS) | 321 Stainless Steel (SS) | 347 Stainless Steel (SS) | Ceramic | Graphite | Hastelloy® | Inconel® | Monel® | Nickel | Polytetrafluoroethylene (PTFE) | Titanium
Specifications Gasket Type
Spiral Wound
Specifications Guide Ring Thickness
1/8 in
Specifications Industry Standard
American Petroleum Institute (API) 601
Specifications Inner Diameter Of Sealing Element For Class 1500
4-5/8 in
Specifications Inner Diameter Of Sealing Element For Class 2500
4-5/8 in
Specifications Inner Diameter Of Sealing Element For Class 900 L
4-3/4 in
Specifications Nominal Gasket Thickness
3/16 in
Specifications Outer Diameter Of Centering Ring For Class 1500 L
8-1/4 in
Specifications Outer Diameter Of Centering Ring For Class 2500 L
9-1/4 in
Specifications Outer Diameter Of Centering Ring For Class 900 Lb
8-1/8 in
Specifications Outside Diameter Of Sealing Element For Class 150
5-7/8 in
Specifications Outside Diameter Of Sealing Element For Class 250
5-7/8 in
Specifications Outside Diameter Of Sealing Element For Class 900
5-7/8 in
Specifications Pipe Size
4 in
Specifications Standard Material For Compression Ring
Carbon Steel
Specifications Standard Material For V Metal Spiral
304 Stainless Steel (SS) with Leaderfite Filler
