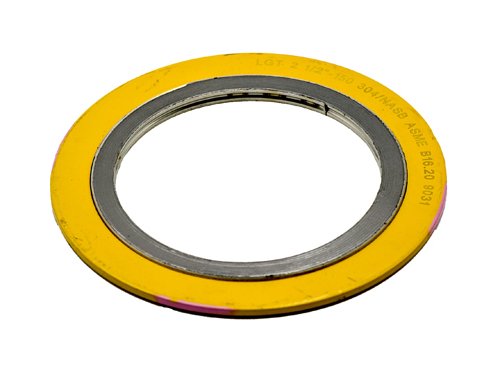

Phelps® Style 9000 Spiral Wound Metal Gaskets with Compression Ring - Varying Materials & Sizes
Phelps® Style 9000 Spiral Wound Metal Gaskets with Compression Ring - Varying Materials & Sizes
SKU:PHE-8f1d43
Phelps® Style 9000 Spiral Wound Metal Gaskets - API 601 Compliant, Various Materials & Sizes
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
Phelps® Style 9000 Spiral Wound Metal Gaskets with Compression Ring - Varying Materials & Sizes
$39.99
Quantity: 1
Claim Your Seller Account
Phelps® Style 9000 Spiral Wound Metal Gaskets with Compression Ring - Varying Materials & Sizes
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Upgrade your industrial sealing solutions with Phelps® Style 9000 Spiral Wound Metal Gaskets featuring a Carbon Steel compression ring. These gaskets offer precise centering, rapid installation, and radial pressure control, reducing spiral/filler crush. Compliant with American Petroleum Institute (API) 601 standard, available in materials like 316L Stainless Steel, Hastelloy®, and more. Customizable sizes for diverse pressure and temperature needs. Meet MIL-G-24716 requirements for government applications.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Specifications Available Material
316L Stainless Steel (SS) | 321 Stainless Steel (SS) | 347 Stainless Steel (SS) | Ceramic | Graphite | Hastelloy® | Inconel® | Monel® | Nickel | Polytetrafluoroethylene (PTFE) | Titanium
Specifications Gasket Type
Spiral Wound
Specifications Guide Ring Thickness
1/8 in
Specifications Industry Standard
American Petroleum Institute (API) 601
Specifications Inner Diameter Of Sealing Element For Class 150 L
1/2 in
Specifications Inner Diameter Of Sealing Element For Class 300 L
1/2 in
Specifications Inner Diameter Of Sealing Element For Class 400 L
1/2 in
Specifications Inner Diameter Of Sealing Element For Class 600 L
1/2 in
Specifications Nominal Gasket Thickness
3/16 in
Specifications Outer Diameter Of Centering Ring For Class 150 Lb
1-3/4 in
Specifications Outer Diameter Of Centering Ring For Class 300 Lb
1-3/4 in
Specifications Outer Diameter Of Centering Ring For Class 400 Lb
1-3/4 in
Specifications Outer Diameter Of Centering Ring For Class 600 Lb
1-3/4 in
Specifications Outside Diameter Of Sealing Element For Class 150
7/8 in
Specifications Outside Diameter Of Sealing Element For Class 300
7/8 in
Specifications Outside Diameter Of Sealing Element For Class 400
7/8 in
Specifications Outside Diameter Of Sealing Element For Class 600
7/8 in
Specifications Pipe Size
1/4 in
Specifications Standard Material For Compression Ring
Carbon Steel
Specifications Standard Material For V Metal Spiral
304 Stainless Steel (SS) with Leaderfite Filler
