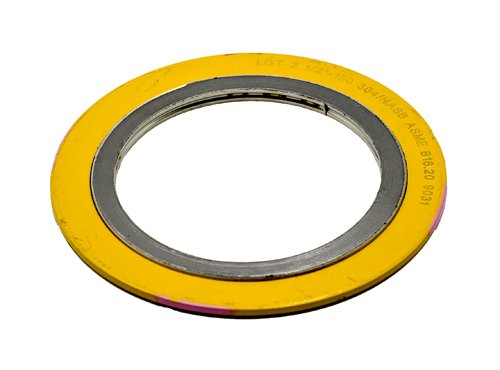

Phelps Style 9000 Spiral Wound Metal Gasket with Compression Ring
Phelps Style 9000 Spiral Wound Metal Gasket with Compression Ring
SKU:PHE-678a14
Phelps® Style 9000 Gasket: Premium spiral wound metal gasket with compression ring for superior sealing in industrial applications.
Regular price
$35.99
Regular price
Sale price
$35.99
Unit price
per
Initiate Order
Phelps Style 9000 Spiral Wound Metal Gasket with Compression Ring
$35.99
Quantity: 1
Claim Your Seller Account
Phelps Style 9000 Spiral Wound Metal Gasket with Compression Ring
$35.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Enhance your industrial sealing with Phelps® Style 9000 Spiral Wound Metal Gaskets featuring a Carbon Steel compression ring for precise centering and radial pressure retention. Compliant with American Petroleum Institute (API) 601 standard, these gaskets are available in various materials like 304 Stainless Steel, Hastelloy®, Inconel®, and more, ensuring durability and versatility across different pressure and temperature ranges.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Specifications Available Material
316L Stainless Steel (SS) | 321 Stainless Steel (SS) | 347 Stainless Steel (SS) | Ceramic | Graphite | Hastelloy® | Inconel® | Monel® | Nickel | Polytetrafluoroethylene (PTFE) | Titanium
Specifications Gasket Type
Spiral Wound
Specifications Guide Ring Thickness
1/8 in
Specifications Industry Standard
American Petroleum Institute (API) 601
Specifications Inner Diameter Of Sealing Element For Class 150 L
16-5/8 in
Specifications Inner Diameter Of Sealing Element For Class 300 L
16-5/8 in
Specifications Inner Diameter Of Sealing Element For Class 400 L
16-1/4 in
Specifications Inner Diameter Of Sealing Element For Class 600 L
16-1/4 in
Specifications Nominal Gasket Thickness
3/16 in
Specifications Outer Diameter Of Centering Ring For Class 150 Lb
20-1/4 in
Specifications Outer Diameter Of Centering Ring For Class 300 Lb
21-1/4 in
Specifications Outer Diameter Of Centering Ring For Class 400 Lb
21-1/8 in
Specifications Outer Diameter Of Centering Ring For Class 600 Lb
22-1/4 in
Specifications Outside Diameter Of Sealing Element For Class 150
18-1/4 in
Specifications Outside Diameter Of Sealing Element For Class 300
18-1/4 in
Specifications Outside Diameter Of Sealing Element For Class 400
18-1/4 in
Specifications Outside Diameter Of Sealing Element For Class 600
18-1/4 in
Specifications Pipe Size
16 in
Specifications Standard Material For Compression Ring
Carbon Steel
Specifications Standard Material For V Metal Spiral
304 Stainless Steel (SS) with Leaderfite Filler
