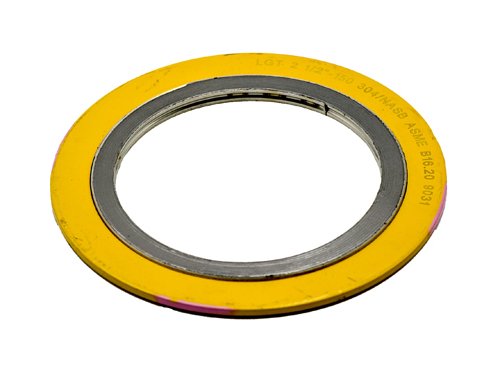

Phelps Style 9000 Spiral Wound Metal Gasket with Compression Ring
Phelps Style 9000 Spiral Wound Metal Gasket with Compression Ring
SKU:PHE-184260
Phelps Style 9000 Spiral Wound Metal Gasket: High-performance sealing solution with carbon steel compression ring, API 601 compliant.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Phelps Style 9000 Spiral Wound Metal Gasket with Compression Ring
$29.99
Quantity: 1
Claim Your Seller Account
Phelps Style 9000 Spiral Wound Metal Gasket with Compression Ring
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Phelps Style 9000 Spiral Wound Metal Gasket with Compression Ring is a top choice for industrial applications requiring reliable sealing solutions. Constructed with a carbon steel compression ring and V metal spirals made of 304 stainless steel with Leaderfite filler, this gasket offers exceptional performance under high pressure and extreme temperatures. Available in various sizes and materials including 316L and 321 stainless steel, graphite, and more, it meets American Petroleum Institute (API) 601 standards. The compression ring ensures precise centering, easy installation, and radial pressure retention while preventing excessive spiral crush. Trust Phelps for quality and durability in every seal.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Specifications Available Material
316L Stainless Steel (SS) | 321 Stainless Steel (SS) | 347 Stainless Steel (SS) | Ceramic | Graphite | Hastelloy® | Inconel® | Monel® | Nickel | Polytetrafluoroethylene (PTFE) | Titanium
Specifications Gasket Type
Spiral Wound
Specifications Guide Ring Thickness
1/8 in
Specifications Industry Standard
American Petroleum Institute (API) 601
Specifications Inner Diameter Of Sealing Element For Class 1500
3-5/8 in
Specifications Inner Diameter Of Sealing Element For Class 2500
3-5/8 in
Specifications Inner Diameter Of Sealing Element For Class 900 L
3-3/4 in
Specifications Nominal Gasket Thickness
3/16 in
Specifications Outer Diameter Of Centering Ring For Class 1500 L
6-7/8 in
Specifications Outer Diameter Of Centering Ring For Class 2500 L
7-3/4 in
Specifications Outer Diameter Of Centering Ring For Class 900 Lb
6-5/8 in
Specifications Outside Diameter Of Sealing Element For Class 150
4-3/4 in
Specifications Outside Diameter Of Sealing Element For Class 250
4-3/4 in
Specifications Outside Diameter Of Sealing Element For Class 900
4-3/4 in
Specifications Pipe Size
3 in
Specifications Standard Material For Compression Ring
Carbon Steel
Specifications Standard Material For V Metal Spiral
304 Stainless Steel (SS) with Leaderfite Filler
