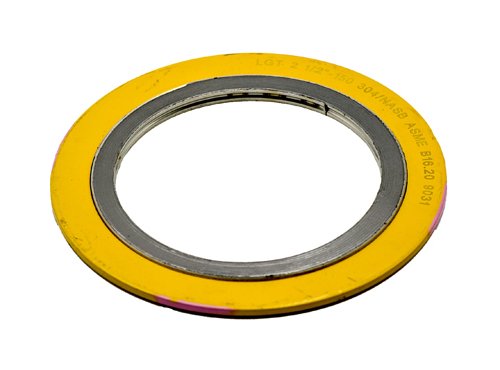

Phelps Style 9000 Spiral Wound Metal Gaskets
Phelps Style 9000 Spiral Wound Metal Gaskets
SKU:PHE-2cbca4
Phelps Style 9000 Gaskets - Precision-engineered metal gaskets with Compression Ring for industrial applications. API 601 compliant.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Phelps Style 9000 Spiral Wound Metal Gaskets
$29.99
Quantity: 1
Claim Your Seller Account
Phelps Style 9000 Spiral Wound Metal Gaskets
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Phelps Style 9000 Spiral Wound Metal Gaskets with Compression Ring are expertly designed for precision and reliability. Compliant with the American Petroleum Institute (API) 601 industry standard, these gaskets feature a Carbon Steel compression ring for accurate centering and radial pressure retention. With materials like 304 Stainless Steel and various options including Ceramic, Graphite, and more, these gaskets ensure optimal performance across different pressure and temperature ranges. Ideal for industrial applications requiring MIL-G-24716 compliance.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Specifications Available Material
316L Stainless Steel (SS) | 321 Stainless Steel (SS) | 347 Stainless Steel (SS) | Ceramic | Graphite | Hastelloy® | Inconel® | Monel® | Nickel | Polytetrafluoroethylene (PTFE) | Titanium
Specifications Gasket Type
Spiral Wound
Specifications Guide Ring Thickness
1/8 in
Specifications Industry Standard
American Petroleum Institute (API) 601
Specifications Inner Diameter Of Sealing Element For Class 150 L
3/4 in
Specifications Inner Diameter Of Sealing Element For Class 300 L
3/4 in
Specifications Inner Diameter Of Sealing Element For Class 400 L
3/4 in
Specifications Inner Diameter Of Sealing Element For Class 600 L
3/4 in
Specifications Nominal Gasket Thickness
3/16 in
Specifications Outer Diameter Of Centering Ring For Class 150 Lb
1-7/8 in
Specifications Outer Diameter Of Centering Ring For Class 300 Lb
2-1/8 in
Specifications Outer Diameter Of Centering Ring For Class 400 Lb
2-1/8 in
Specifications Outer Diameter Of Centering Ring For Class 600 Lb
2-1/8 in
Specifications Outside Diameter Of Sealing Element For Class 150
1-1/4 in
Specifications Outside Diameter Of Sealing Element For Class 300
1-1/4 in
Specifications Outside Diameter Of Sealing Element For Class 400
1-1/4 in
Specifications Outside Diameter Of Sealing Element For Class 600
1-1/4 in
Specifications Pipe Size
1/2 in
Specifications Standard Material For Compression Ring
Carbon Steel
Specifications Standard Material For V Metal Spiral
304 Stainless Steel (SS) with Leaderfite Filler
