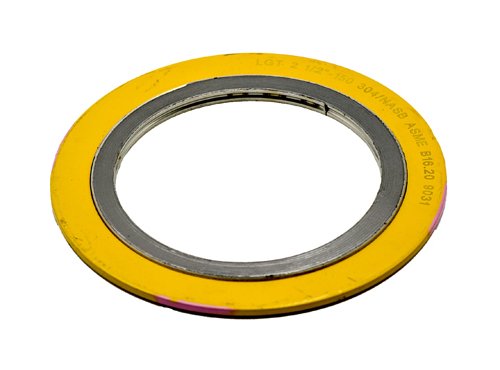

Phelps Style 9000 Spiral Wound Metal Gaskets with Compression Ring
Phelps Style 9000 Spiral Wound Metal Gaskets with Compression Ring
SKU:PHE-b59c67
Premium spiral wound metal gaskets with compression ring for precise sealing in high-pressure applications. API 601 compliant with versatile material options.
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
Phelps Style 9000 Spiral Wound Metal Gaskets with Compression Ring
$39.99
Quantity: 1
Claim Your Seller Account
Phelps Style 9000 Spiral Wound Metal Gaskets with Compression Ring
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Enhance your sealing solutions with Phelps Style 9000 Spiral Wound Metal Gaskets featuring a Carbon Steel compression ring for precise centering and radial pressure retention. Compliant with American Petroleum Institute (API) 601 standards, available in various materials including Stainless Steel, Graphite, and more. Suitable for multiple pipe sizes with exceptional performance in high-pressure environments.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Specifications Available Material
316L Stainless Steel (SS) | 321 Stainless Steel (SS) | 347 Stainless Steel (SS) | Ceramic | Graphite | Hastelloy® | Inconel® | Monel® | Nickel | Polytetrafluoroethylene (PTFE) | Titanium
Specifications Gasket Type
Spiral Wound
Specifications Guide Ring Thickness
1/8 in
Specifications Industry Standard
American Petroleum Institute (API) 601
Specifications Inner Diameter Of Sealing Element For Class 150 L
1 in
Specifications Inner Diameter Of Sealing Element For Class 300 L
1 in
Specifications Inner Diameter Of Sealing Element For Class 400 L
1 in
Specifications Inner Diameter Of Sealing Element For Class 600 L
1 in
Specifications Nominal Gasket Thickness
3/16 in
Specifications Outer Diameter Of Centering Ring For Class 150 Lb
2-1/4 in
Specifications Outer Diameter Of Centering Ring For Class 300 Lb
2-5/8 in
Specifications Outer Diameter Of Centering Ring For Class 400 Lb
2-5/8 in
Specifications Outer Diameter Of Centering Ring For Class 600 Lb
2-5/8 in
Specifications Outside Diameter Of Sealing Element For Class 150
1-9/16 in
Specifications Outside Diameter Of Sealing Element For Class 300
1-9/16 in
Specifications Outside Diameter Of Sealing Element For Class 400
1-9/16 in
Specifications Outside Diameter Of Sealing Element For Class 600
1-9/16 in
Specifications Pipe Size
3/4 in
Specifications Standard Material For Compression Ring
Carbon Steel
Specifications Standard Material For V Metal Spiral
304 Stainless Steel (SS) with Leaderfite Filler
