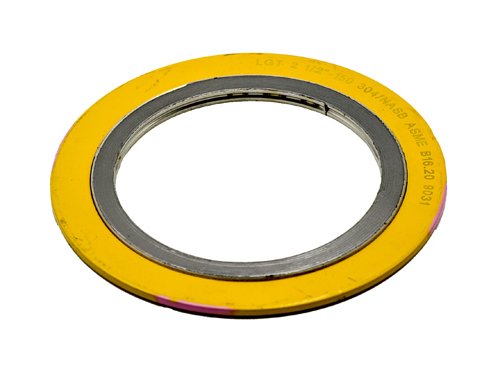

Phelps Style 9000 Spiral Wound Metal Gaskets with Compression Ring - 16-inch
Phelps Style 9000 Spiral Wound Metal Gaskets with Compression Ring - 16-inch
SKU:PHE-09c6c3
Premium Phelps Style 9000 Spiral Wound Metal Gaskets with Compression Ring - Reliable sealing & compliance with API 601 standards - Ideal for high-pressure applications.
Regular price
$35.99
Regular price
Sale price
$35.99
Unit price
per
Initiate Order
Phelps Style 9000 Spiral Wound Metal Gaskets with Compression Ring - 16-inch
$35.99
Quantity: 1
Claim Your Seller Account
Phelps Style 9000 Spiral Wound Metal Gaskets with Compression Ring - 16-inch
$35.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Designed to meet the stringent requirements of industrial applications, the Phelps Style 9000 Spiral Wound Metal Gaskets with Compression Ring feature a Carbon steel compression ring for precise centering and quick installation. Compliant with American Petroleum Institute (API) 601 standards, these gaskets are constructed with 304 Stainless Steel V Metal Spiral with Leaderfite Filler and are available in various materials such as 316L Stainless Steel, Hastelloy, Inconel, and more. With a nominal thickness of 3/16 inches, these gaskets provide reliable radial pressure retention and sealing, making them ideal for high-pressure environments.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Specifications Available Material
316L Stainless Steel (SS) | 321 Stainless Steel (SS) | 347 Stainless Steel (SS) | Ceramic | Graphite | Hastelloy® | Inconel® | Monel® | Nickel | Polytetrafluoroethylene (PTFE) | Titanium
Specifications Gasket Type
Spiral Wound
Specifications Guide Ring Thickness
1/8 in
Specifications Industry Standard
American Petroleum Institute (API) 601
Specifications Inner Diameter Of Sealing Element For Class 1500
16 in
Specifications Inner Diameter Of Sealing Element For Class 900 L
16-1/4 in
Specifications Nominal Gasket Thickness
3/16 in
Specifications Outer Diameter Of Centering Ring For Class 1500 L
25-1/4 in
Specifications Outer Diameter Of Centering Ring For Class 900 Lb
22-5/8 in
Specifications Outside Diameter Of Sealing Element For Class 150
18 in
Specifications Outside Diameter Of Sealing Element For Class 250
18 in
Specifications Outside Diameter Of Sealing Element For Class 900
18 in
Specifications Pipe Size
16 in
Specifications Standard Material For Compression Ring
Carbon Steel
Specifications Standard Material For V Metal Spiral
304 Stainless Steel (SS) with Leaderfite Filler
