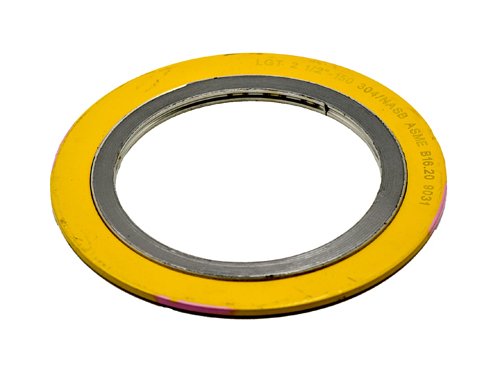

Phelps Style 9000 Spiral Wound Metal Gaskets with Compression Ring
Phelps Style 9000 Spiral Wound Metal Gaskets with Compression Ring
SKU:PHE-2cfd45
Phelps Style 9000 Spiral Wound Metal Gaskets - Durable, precise, and API 601 compliant for reliable sealing in industrial applications.
Regular price
$59.99
Regular price
Sale price
$59.99
Unit price
per
Initiate Order
Phelps Style 9000 Spiral Wound Metal Gaskets with Compression Ring
$59.99
Quantity: 1
Claim Your Seller Account
Phelps Style 9000 Spiral Wound Metal Gaskets with Compression Ring
$59.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Phelps Style 9000 Spiral Wound Metal Gaskets with Compression Ring combine durability and precision engineering. Crafted with a Carbon Steel compression ring surrounding the spirals, these gaskets offer superior centering, quick installation, and radial pressure retention. Available in various sizes and pressure ratings, including options compliant with MIL-G-24716, these gaskets ensure reliable sealing performance under diverse industrial conditions. With a choice of materials such as 304 Stainless Steel, Hastelloy, and PTFE, these gaskets meet American Petroleum Institute (API) 601 standards, ensuring quality and reliability in demanding applications.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Specifications Available Material
316L Stainless Steel (SS) | 321 Stainless Steel (SS) | 347 Stainless Steel (SS) | Ceramic | Graphite | Hastelloy® | Inconel® | Monel® | Nickel | Polytetrafluoroethylene (PTFE) | Titanium
Specifications Gasket Type
Spiral Wound
Specifications Guide Ring Thickness
1/8 in
Specifications Industry Standard
American Petroleum Institute (API) 601
Specifications Inner Diameter Of Sealing Element For Class 150 L
9-3/16 in
Specifications Inner Diameter Of Sealing Element For Class 300 L
9-3/16 in
Specifications Inner Diameter Of Sealing Element For Class 400 L
8-7/8 in
Specifications Inner Diameter Of Sealing Element For Class 600 L
8-7/8 in
Specifications Nominal Gasket Thickness
3/16 in
Specifications Outer Diameter Of Centering Ring For Class 150 Lb
11 in
Specifications Outer Diameter Of Centering Ring For Class 300 Lb
12-1/8 in
Specifications Outer Diameter Of Centering Ring For Class 400 Lb
12 in
Specifications Outer Diameter Of Centering Ring For Class 600 Lb
12-5/8 in
Specifications Outside Diameter Of Sealing Element For Class 150
10-3/8 in
Specifications Outside Diameter Of Sealing Element For Class 300
10-3/8 in
Specifications Outside Diameter Of Sealing Element For Class 400
10-3/8 in
Specifications Outside Diameter Of Sealing Element For Class 600
10-3/8 in
Specifications Pipe Size
8 in
Specifications Standard Material For Compression Ring
Carbon Steel
Specifications Standard Material For V Metal Spiral
304 Stainless Steel (SS) with Leaderfite Filler
