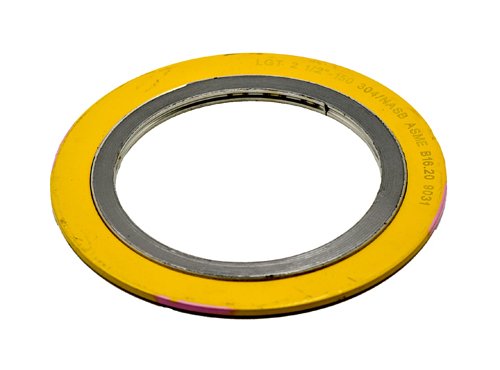

Phelps® Style 9000 Spiral Wound Metal Gaskets
Phelps® Style 9000 Spiral Wound Metal Gaskets
SKU:PHE-ffeed8
Enhance seals with Phelps® Style 9000 Gaskets, featuring Carbon Steel compression ring, API 601 compliant, and versatile material options.
Regular price
$45.99
Regular price
Sale price
$45.99
Unit price
per
Initiate Order
Phelps® Style 9000 Spiral Wound Metal Gaskets
$45.99
Quantity: 1
Claim Your Seller Account
Phelps® Style 9000 Spiral Wound Metal Gaskets
$45.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Upgrade your sealing solutions with Phelps® Style 9000 Spiral Wound Metal Gaskets featuring a Carbon Steel compression ring for precise centering, quick installation, and enhanced radial pressure retention. Compliant with American Petroleum Institute (API) 601 standards, these gaskets are available in various materials including 316L Stainless Steel, Hastelloy®, and Graphite, ensuring reliability in diverse industrial applications. With options for different pressure classes and diameters, these gaskets offer durability, crush resistance, and optimal sealing performance.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Specifications Available Material
316L Stainless Steel (SS) | 321 Stainless Steel (SS) | 347 Stainless Steel (SS) | Ceramic | Graphite | Hastelloy® | Inconel® | Monel® | Nickel | Polytetrafluoroethylene (PTFE) | Titanium
Specifications Gasket Type
Spiral Wound
Specifications Guide Ring Thickness
1/8 in
Specifications Industry Standard
American Petroleum Institute (API) 601
Specifications Inner Diameter Of Sealing Element For Class 150 L
14-5/8 in
Specifications Inner Diameter Of Sealing Element For Class 300 L
14-5/8 in
Specifications Inner Diameter Of Sealing Element For Class 400 L
14-1/4 in
Specifications Inner Diameter Of Sealing Element For Class 600 L
14-1/4 in
Specifications Nominal Gasket Thickness
3/16 in
Specifications Outer Diameter Of Centering Ring For Class 150 Lb
17-3/4 in
Specifications Outer Diameter Of Centering Ring For Class 300 Lb
19-1/8 in
Specifications Outer Diameter Of Centering Ring For Class 400 Lb
19 in
Specifications Outer Diameter Of Centering Ring For Class 600 Lb
19-3/8 in
Specifications Outside Diameter Of Sealing Element For Class 150
16 in
Specifications Outside Diameter Of Sealing Element For Class 300
16 in
Specifications Outside Diameter Of Sealing Element For Class 400
16 in
Specifications Outside Diameter Of Sealing Element For Class 600
16 in
Specifications Pipe Size
14 in
Specifications Standard Material For Compression Ring
Carbon Steel
Specifications Standard Material For V Metal Spiral
304 Stainless Steel (SS) with Leaderfite Filler
