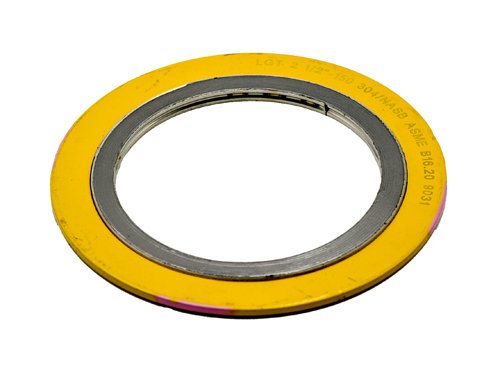

Phelps® Style 9000 Spiral Wound Metal Gaskets with Compression Ring
Phelps® Style 9000 Spiral Wound Metal Gaskets with Compression Ring
SKU:PHE-c60d06
Phelps® Style 9000 Spiral Wound Metal Gaskets: Superior performance with carbon steel compression ring, V metal spirals, and versatile material options.
Regular price
$35.99
Regular price
Sale price
$35.99
Unit price
per
Initiate Order
Phelps® Style 9000 Spiral Wound Metal Gaskets with Compression Ring
$35.99
Quantity: 1
Claim Your Seller Account
Phelps® Style 9000 Spiral Wound Metal Gaskets with Compression Ring
$35.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Phelps® Style 9000 Spiral Wound Metal Gaskets with Compression Ring are expertly engineered to meet the demanding requirements of industrial applications. Featuring a carbon steel compression ring and V metal spirals made of 304 Stainless Steel with Leaderfite Filler, these gaskets assure superior performance and durability. With a wide range of available materials such as 316L Stainless Steel, Ceramic, Graphite, and more, these gaskets are versatile and suitable for various operating conditions. The inclusion of a radial pressure-retaining compression ring ensures precise centering, easy installation, and effectively limits the crush of the spiral/filler section, making them a reliable choice for critical sealing applications.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Specifications Available Material
316L Stainless Steel (SS) | 321 Stainless Steel (SS) | 347 Stainless Steel (SS) | Ceramic | Graphite | Hastelloy® | Inconel® | Monel® | Nickel | Polytetrafluoroethylene (PTFE) | Titanium
Specifications Gasket Type
Spiral Wound
Specifications Guide Ring Thickness
1/8 in
Specifications Industry Standard
American Petroleum Institute (API) 601
Specifications Inner Diameter Of Sealing Element For Class 150 L
4-1/2 in
Specifications Inner Diameter Of Sealing Element For Class 300 L
4-1/2 in
Specifications Inner Diameter Of Sealing Element For Class 400 L
4-1/8 in
Specifications Inner Diameter Of Sealing Element For Class 600 L
4-1/8 in
Specifications Nominal Gasket Thickness
3/16 in
Specifications Outer Diameter Of Centering Ring For Class 150 Lb
6-3/8 in
Specifications Outer Diameter Of Centering Ring For Class 300 Lb
6-1/2 in
Specifications Outer Diameter Of Centering Ring For Class 400 Lb
6-3/8 in
Specifications Outer Diameter Of Centering Ring For Class 600 Lb
6-3/8 in
Specifications Outside Diameter Of Sealing Element For Class 150
5-1/4 in
Specifications Outside Diameter Of Sealing Element For Class 300
5-1/4 in
Specifications Outside Diameter Of Sealing Element For Class 400
5-1/4 in
Specifications Outside Diameter Of Sealing Element For Class 600
5-1/4 in
Specifications Pipe Size
3-1/2 in
Specifications Standard Material For Compression Ring
Carbon Steel
Specifications Standard Material For V Metal Spiral
304 Stainless Steel (SS) with Leaderfite Filler
