Phillips Drive Compression Latch, 11mm Min Panel Thickness, B Mounting Bracket

Name: Phillips Drive Compression Latch, 11mm Min Panel Thickness, B Mounting Bracket
Brand: All Electronics Hardware
SKU: IND-aa1aa1
Price: 24.99 USD
Availability: OutOfStock

SKU:IND-aa1aa1

Secure and compressively latch doors with ease using this Phillips Drive Compression Latch. 11mm Min Panel Thickness.

$24.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Phillips Drive Compression Latch with B Mounting Bracket is a robust solution ensuring easy, secure, and compressive latching and locking of doors and flaps. It features a durable construction with a minimum panel thickness of 11mm, suitable for panel thicknesses ranging from 11mm to 21mm. The latch offers a dependable grip range from 1mm to 14mm, with precise dimensions for seamless installation. Crafted from high-quality materials like mild steel and die-cast zinc with corrosion-resistant finishes, this latch is designed for long-lasting performance in industrial settings.

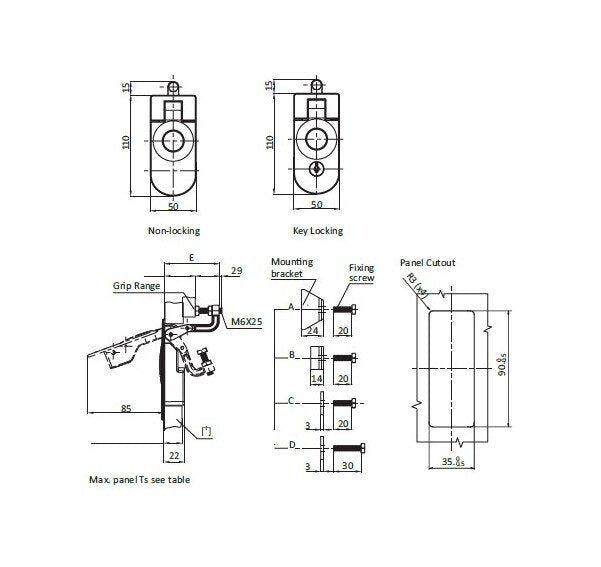

Product Specifications

Specifications Cylinder Style

Phillips Drive

Specifications Dimension E

29 mm

Specifications Material

Cam: Mild Steel | Housing, Handle, and Trigger: Die-Cast Zinc

Specifications Maximum Grip Range

14 mm

Specifications Maximum Panel Thickness

21 mm

Specifications Minimum Grip Range

1 mm

Specifications Minimum Panel Thickness

11 mm

Specifications Mounting Bracket

Specifications Surface Finish

Bolt: Zinc Plated | Housing, Handle, and Trigger: Black Powder Coated

Phillips Drive Compression Latch, 11mm Min Panel Thickness, B Mounting Bracket
