Phillips Drive Compression Latch with 11mm Panel Thickness and B Mounting Bracket

Name: Phillips Drive Compression Latch with 11mm Panel Thickness and B Mounting Bracket
Brand: All Electronics Hardware
SKU: IND-4aa210
Price: 29.99 USD
Availability: OutOfStock

SKU:IND-4aa210

Secure and compressively latch doors and flaps with ease using this Phillips Drive Compression Latch designed for industrial applications.

$29.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Phillips Drive Compression Latch is engineered for seamless locking and latching of doors and flaps, offering both security and convenience. With a minimum panel thickness of 11mm and a sturdy B mounting bracket, this latch ensures a reliable grip range of 45-57mm. Crafted with high-quality materials including mild steel and die-cast zinc, it features a durable black powder-coated finish for long-lasting performance. Ideal for industrial applications requiring precision and durability.

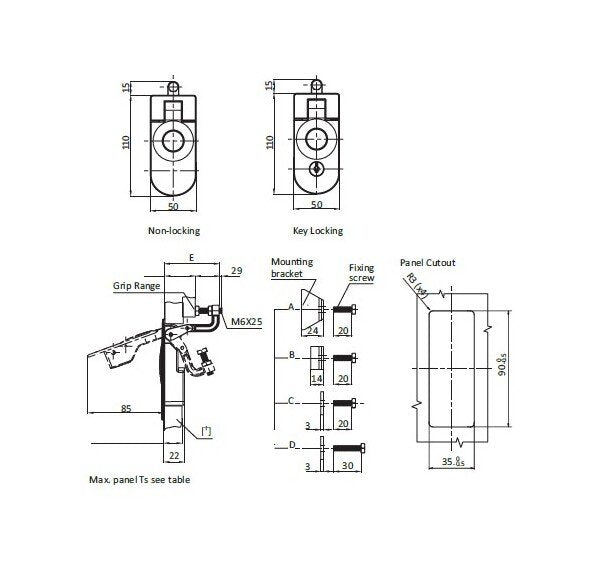

Product Specifications

Specifications Cylinder Style

Phillips Drive

Specifications Dimension E

72 mm

Specifications Material

Cam: Mild Steel | Housing, Handle, and Trigger: Die-Cast Zinc

Specifications Maximum Grip Range

57 mm

Specifications Maximum Panel Thickness

21 mm

Specifications Minimum Grip Range

45 mm

Specifications Minimum Panel Thickness

11 mm

Specifications Mounting Bracket

Specifications Surface Finish

Bolt: Zinc Plated | Housing, Handle, and Trigger: Black Powder Coated
