Phoenix High Profile Automatic Stretch Wrapping Machinery
Phoenix High Profile Automatic Stretch Wrapping Machinery
SKU:MAC-05fbaa
Phoenix PHPA-2200: Efficient, reliable, and compliant automatic stretch wrapping machinery for heavy loads.
Regular price
$9,999.99
Regular price
Sale price
$9,999.99
Unit price
per
Initiate Order
Phoenix High Profile Automatic Stretch Wrapping Machinery
$9,999.99
Quantity: 1
Claim Your Seller Account
Phoenix High Profile Automatic Stretch Wrapping Machinery
$9,999.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

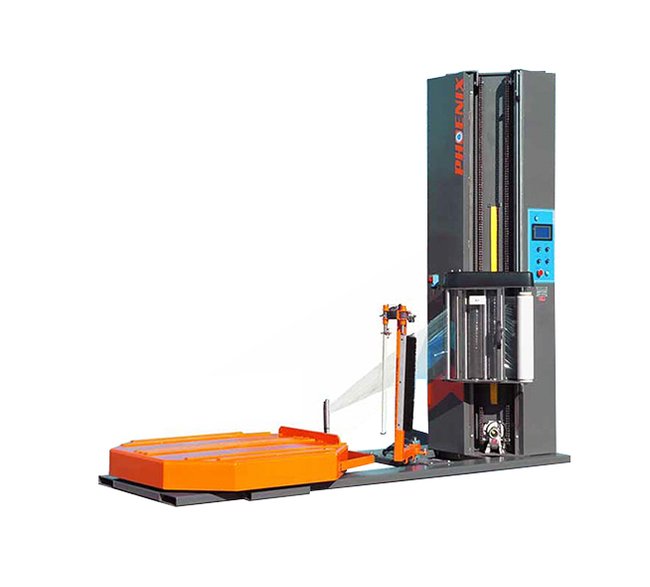

The Phoenix PHPA-2200 High Profile Automatic Turntable Stretch Wrapping Machinery is an industry-leading solution for efficient and secure pallet wrapping. With a maximum load weight of 5000 lb and variable wrapping speed of 0 to 15 rpm, it offers exceptional performance. This machinery features film-saving logic that reduces film waste, safety measures like a pneumatic cut & wipe system, and a durable design with HSS formed steel tower and maintenance-free polymer support bearings. Backed by a 10-year frame warranty and meeting Cdn & US standards, it ensures reliability and compliance for institutional buyers.
Product Specifications
Features Features
Film Cost SavingsMultiple wrap cycles apply film only where required.Separate up/down speeds save time & up to 10% reduction of stretch film costs.Separate top/bottom wrap selections eliminate wasted revolutions of film.Film saving logic eliminates film waste.Safety MeasuresTimed, impulse cut wire is only ON when cutting and cold to the touch in seconds.Not hazardous to operator.No permanent, constant heat source.Pneumatic cut & wipe system with no mechanical drive thus, nothing gets caught in mechanical system.Maintenance WiseMore table support casters than any in its class.Maintenance-free polymer support bearings for quiet, efficient operation.Structural angle guard is welded to turntable to protect film clamp when un/loading.Lifetime Warranty on Pre-stretch Rollers.Durable DesignDual #50; chain carriage lifting system for unprecedented safety.HSS formed steel tower to protect lifting & rotation motors.Solid "cold rolled" steel carriage guide bars welded in the tower.Top quality commercially available components.Meets all Cdn & US standards with cUL Approval.
Load Handling Variable Wrapping Speed
0 to 15 rpm
Note Note
Specifications subject to change without notice.
Performance Maximum Load Weight
5000 lb
Specifications 3 Wrap Programs
Top Cover Pause | Wrap Up & Wrap Up/Down
Specifications Alternating Current Ac Voltage
120 V
Specifications Brand
Phoenix
Specifications Control Setting
Password Protected
Specifications Current
15 A
Specifications Forklift Portable
Back | Front
Specifications Heavy Duty Hd Support Casters
9
Specifications Load Height
0 to 80 in
Specifications Maximum Diagonal Load Size
80 in
Specifications Top And Bottom Wrap Counters
Separate 1 to 9 Count
Specifications Turntable Height
8-3/4 in
Specifications Turntable Octagon Size
48 x 48 in
Specifications Type
Stretch
Specifications Updown Speeds Carriage
Separate
Specifications Warranty
10 Years-Frame | 3 Years-All Parts
Specifications Wrap Tension
Variable
